Brand: Panduit
|
SKU:
10044453

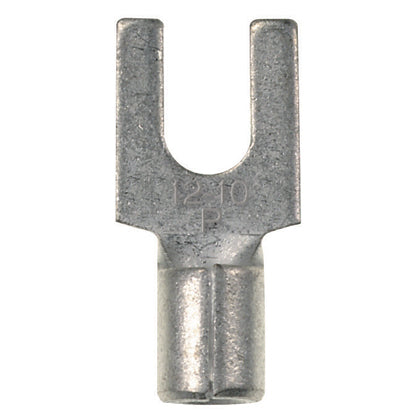

Panduit P14-6FN-M | Loose Piece Forks | UPC - 07498380861
Regular price
$193.26
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P14-6FN-M | Loose Piece Forks | UPC - 07498380861
Regular price
$193.26
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece Non-Insulated, Series: P-FN, Stranded Copper Conductor, 18 to 14 AWG Conductor, #6 Stud, 0.63 in Length, Brazed Seam Barrel, 0.07 in ID x 0.14 in OD Barrel, Narrow Fork Tongue, 0.24 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.2 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
- Locks in place for secure connection
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit P14-6FN-M | Loose Piece Forks | UPC - 07498380861 Key Specs
| Fork Type | Narrow Fork |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | M3.5 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H, E52164 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
Panduit Panduit P14-6FN-M | Loose Piece Forks | UPC - 07498380861 Environmental Information
| Panduit's RoHS Statement | Download and View |
