Panduit P14-6LF-M | Loose Piece Forks | UPC - 07498380907
Regular price
$220.18
Unit price
Brand: Panduit
|
SKU:
PAN-P14-6LF-M
Regular price
$220.18
Unit price
Shipping calculated at checkout.
Description
Description

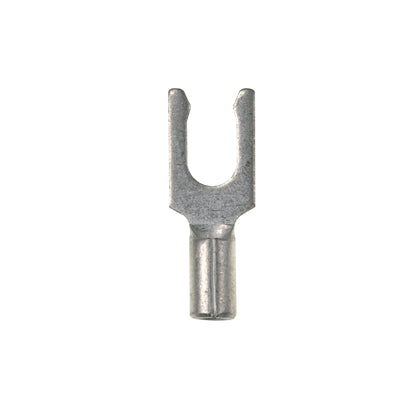

Panduit Pan-Term Fork Terminal, Loose Piece Non-Insulated, Series: P-LF, Stranded Copper Conductor, 18 to 14 AWG Conductor, #6 Stud, 0.7 in Length, Brazed Seam Barrel, 0.09 in ID x 0.16 in OD Barrel, Locking Fork Tongue, 0.25 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.22 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
Features + Benefits
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit P14-6LF-M | Loose Piece Forks | UPC - 07498380907 Key Specs
| Fork Type | Locking Fork |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
Panduit P14-6LF-M | Loose Piece Forks | UPC - 07498380907 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #18-14 Barrel Non-Insulated Locking Fork | Download and View |
Panduit P14-6LF-M | Loose Piece Forks | UPC - 07498380907 Environmental Information
| Panduit's RoHS Statement | Download and View |
