Brand: Panduit
|
SKU:
P14-6R-M-EA

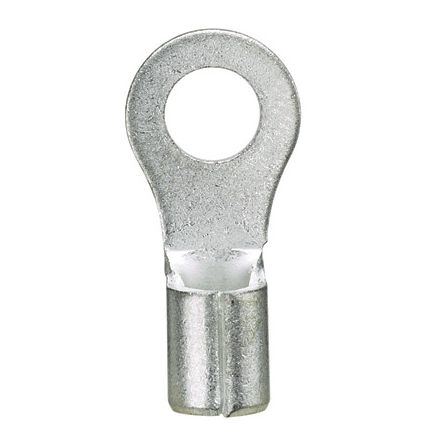

Panduit P14-6R-M | Pan-Term P14-6R-M Ring Terminal, Bare, 14-18 AWG, #6 Stud, PK1000
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P14-6R-M | Pan-Term P14-6R-M Ring Terminal, Bare, 14-18 AWG...
Regular price
$1.46
Unit price
Description
Description
Panduit P14-6R-M | Pan-Term P14-6R-M Ring Terminal, Bare, 14-18 AWG, #6 Stud, PK1000
Ring Terminal, 18 – 14 AWG, #6 stud size, non-insulated, bulk package.
Panduit P14-6R-M - TERMINAL - RING TERMINAL NON INS
Specifications
Specifications
Panduit - P14-6R-M - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P14-6R-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P14-6R-M |
| Item Description | Pan-Term P14-6R-M Ring Terminal, Bare, 14-18 AWG, #6 Stud, PK1000 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.16 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 4.06 |
| Inside Diameter (In.) | 0.09 |
| Inside Diameter (mm) | 2.3 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.62 |
| Overall Length (mm) | 15.8 |
| Overall Width (In.) | 0.25 |
| Overall Width (mm) | 6.4 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.25 |
| Tongue Width (mm) | 6.4 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - P14-6R-M - Package Information
| UPC | 07498380217 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.4190 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
