Panduit P14-8FF-C | Pan-Term Loose Piece Forks
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
266392
Regular price
$1.46
Unit price
Description
Description

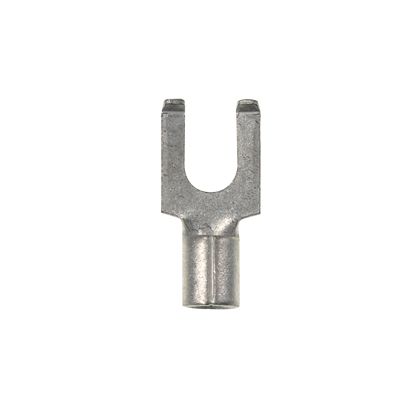

Panduit P14-8FF-C | Pan-Term Loose Piece Forks
Our non-insulated flanged fork terminal connects electrical wires, featuring a hassle-free installation, a strong flanged design, and a reliable internal grip for various applications.
Panduit Pan-Term Fork Terminal, Loose Piece Non-Insulated, Series: P-FF, Stranded Copper Conductor, 16 to 14 AWG Conductor, #8 Stud, 0.72 in Length, Brazed Seam Barrel, Flanged Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.23 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
Panduit - P14-8FF-C - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - P14-8FF-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P14-8FF-C |
| Fork Type | Flanged Fork |
| Insulation Material | Non-Insulated |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380704 |
Panduit - P14-8FF-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
