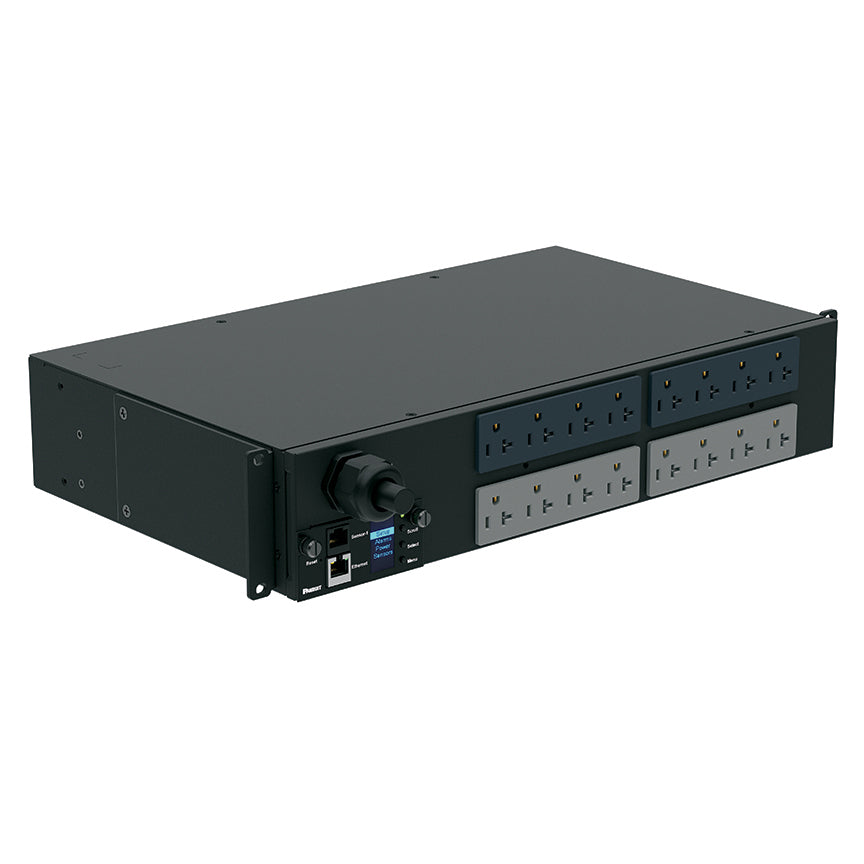

Panduit P16D12M | Monitored Input PDU | UPC - 61305631630
Description
Description
The Panduit SmartZone G5 iPDU is more than a power distribution unit and energy meter. These iPDU's monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads and physical environmental conditions that place critical IT equipment at risk. Panduit iPDU's provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness) and drive green data center initiatives to save energy and money. Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors and dual locking power cords are the key to fulfilling mission critical data center needs.
Panduit SmartZone G5 Power Distribution Unit, 1-Phase, Series: MI Series, 120 VAC, 24 A, 16 Outlets, 10 ft Cord, 50/60 Hz, Surface/Horizontal, NEMA L5-30P Plug, NEMA 5-20R Receptacle, Black, 17.5 in W x 10.6 in D x 3.4 in H
Features + Benefits
- 1U orientation
- 1.92 kW maximum power rating
- (1) 1-pole 20 A circuit breaker
- (1) 025-2023 RFI suppression
- Surge suppression surge protection
Panduit P16D12M Key Specs
| Product Type | Monitored Input PDU |
| Mount Orientation | Horizontal |
| Sub Brand | SmartZone G5 |
| Plug Type | NEMA L5-30P |
| Input Voltage (V) | 120 |
| Amperage (A) | 30 |
| Number of Outlets | (16)5-20R |
| Output Voltage (V) | 120 |
| Phase | Single Phase |
| Cable Length (ft.) | 9.84 |
| Cable Length (m) | 3 |
| Overall Depth (In.) | 10.6 |
| Overall Depth (mm) | 269.2 |
| Overall Height (In.) | 1.71 |
| Overall Height (mm) | 43.4 |
| Overall Width (In.) | 17.5 |
| Overall Width (mm) | 444.5 |
| Overall Length (In.) | 3.4 |
| Overall Length (mm) | 86.4 |
Panduit P16D12M Data Sheets
| Part Drawings | StrongHold Miniature and Intermediate Ties | Download and View |
| Flyers | StrongHold General Purpose Contractor Ties | Download and View |
