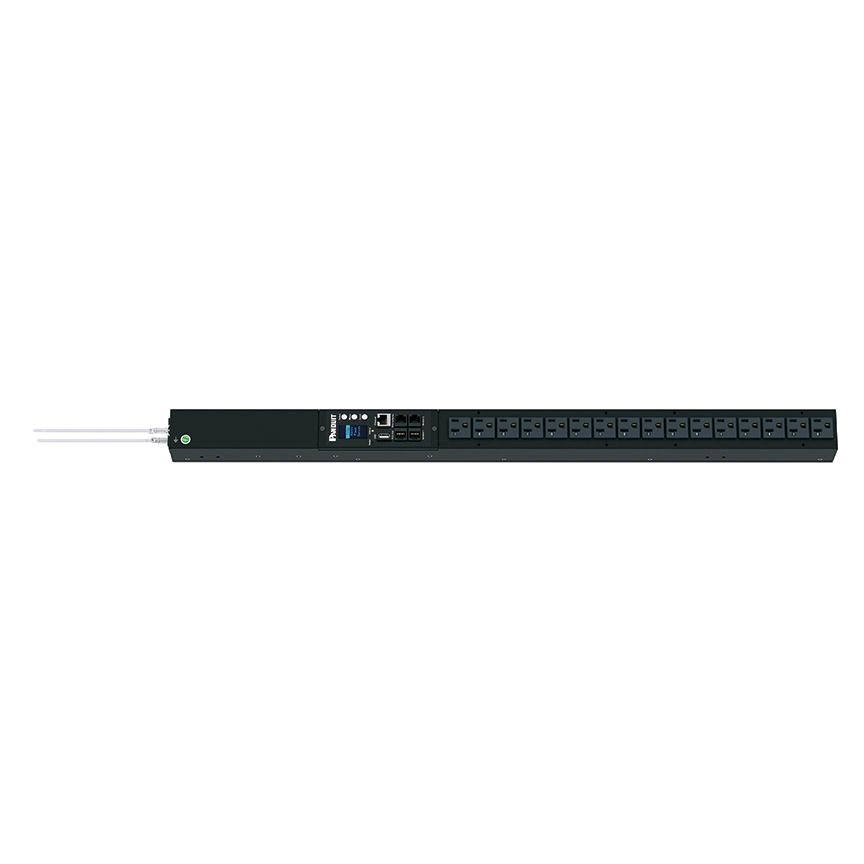

Panduit P16D21M | G5 Monitored Input PDU
Description
Description
The Panduit SmartZone G5 iPDU is more than a power distribution unit and energy meter. These iPDU's monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads and physical environmental conditions that place critical IT equipment at risk. Panduit iPDU's provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness) and drive green data center initiatives to save energy and money. Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors and dual locking power cords are the key to fulfilling mission critical data center needs.
Panduit SmartZone G5 Power Distribution Unit, 1-Phase, Series: MI Series, 120 VAC, 16 A, 16 Outlets, 10 ft Cord, 50/60 Hz, Surface/Vertical, NEMA 5-20P Plug, NEMA 5-20R Receptacle, Black, 2 in W x 2.1 in D x 32.2 in H
Enhance data center efficiency with our G5 monitored input PDU. Benefit from real-time power monitoring, space-saving design, and rapid fault detection for improved system reliability.
Panduit SmartZone G5 Monitored Input PDU, 20A, 1Phase, 120 V, (16)5-20R, NEMA 5-20P Input Plug with a 10’ (3m) power cord, Color: Black
Panduit - P16D21M - Features
- These small cables minimize waste, optimize cable management, speed deployment, improve flexibility and manageability
- Typically used for connectivity between the switch in horizontal cabling
- Installs into QuickNet MPO patch panels on one end and switch ports on the other end
- New cable management transition allows multiple harnesses to attach to each other or be secured to a rack or cabinet with Tak-Ty hook and loop cable ties
- Without surge protection
Specifications
Specifications
Panduit - P16D21M - Specifications
| Number Of Outlets | Other |
|---|---|
| UNSPSC Code | 39121017 |
| Technical Information | UL Listed |
| Note | NA Only |
| Includes | Mounting Hardware |
| Product Type | PDU |
| Mount Orientation | Vertical |
| Sub Brand | G5 |
| Rack PDU Type | Monitored Input |
| Plug Type | NEMA 5-20P |
| Number of Circuit Breakers | 0 |
| Input Voltage (V) | 120 |
| Input Amperage (A) | 20 |
| Phase | Single-Phase |
| Frequency Compatibility (Hz) | 50/60 |
| Current Measurement Accuracy (%) | ±1% |
| Voltage Measurement Accuracy (%) | ±1% |
| Power Measurement Accuracy (%) | ±1% |
| Input Cord Length (ft.) | 10 |
| Input Cord Length (m) | 3 |
| Output Receptacles | (16)5-20R |
| Output Voltage (V) | 120 |
| Output Capacity (kW) | 1.9 |
| Front Panel Display | Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device |
| UPC | 61305631723 |
Panduit - P16D21M - Package Information
| UPC | 61305631723 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.7639 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
