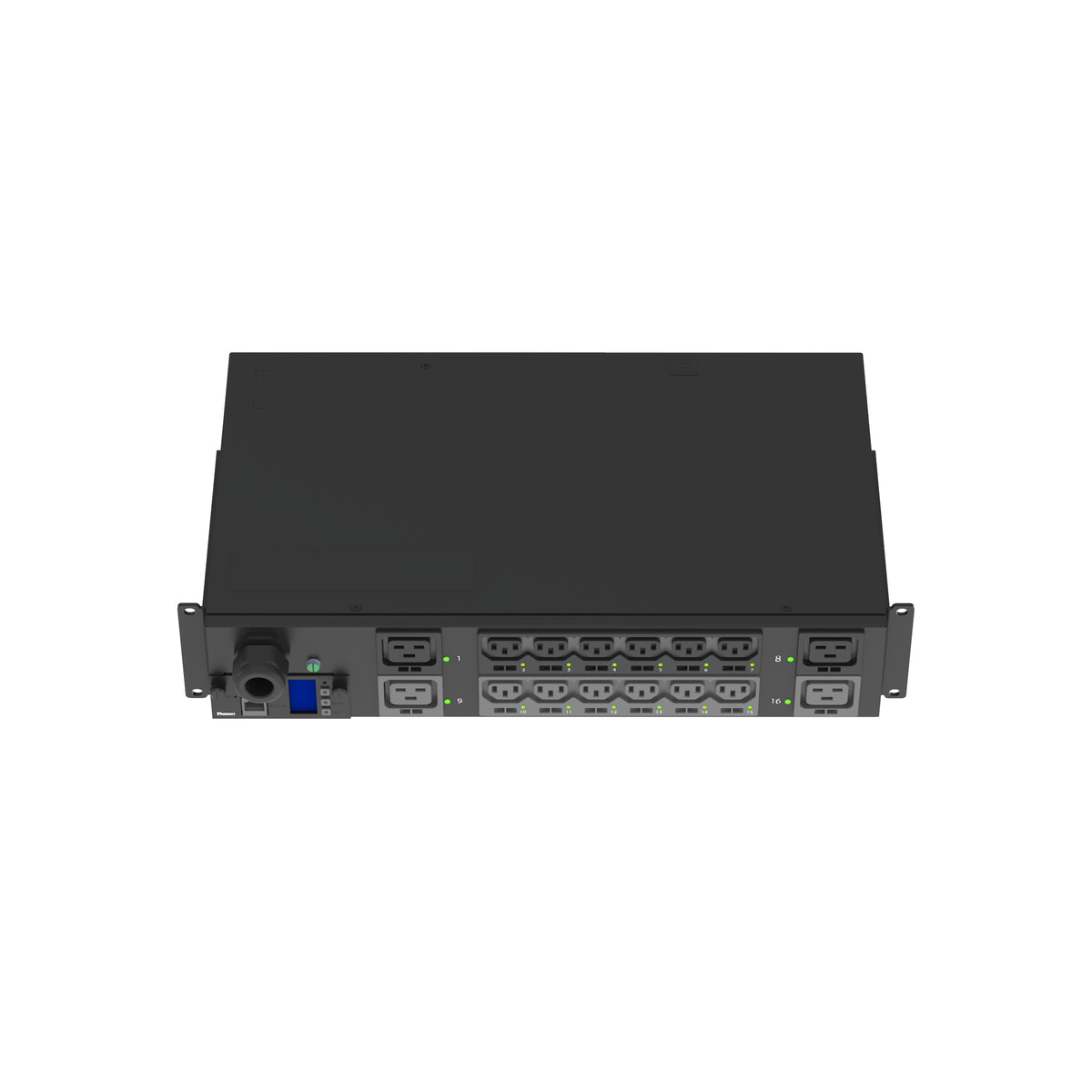

Panduit P16E19M | Monitored Switched PDU | UPC - 61305631701
Description
Description
The Panduit SmartZone G5 iPDU is more than a power distribution unit and energy meter. These iPDU's monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads and physical environmental conditions that place critical IT equipment at risk. Panduit iPDU's provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness) and drive green data center initiatives to save energy and money. Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors and dual locking power cords are the key to fulfilling mission critical data center needs.
Panduit SmartZone G5 Power Distribution Unit, 1-Phase, Series: MS Series, 208 VAC, 24 A, 16 Outlets, 10 ft Cord, 50/60 Hz, Surface/Horizontal, NEMA L6-30P Plug, IEC C-13/IEC C-19 Receptacle, Black, 17.5 in W x 10.6 in D x 3.4 in H
Features + Benefits
- Replace the controller and display module without having to power down the rack
- Specifically designed for Landlord/Tenant (Co-Lo's) allowing for remote access of real-time, vital statistics and operating information on two separate, secure networks
- Not only physical but hardened digital security, layers within the firmware LDAP, SNMP v3, TLS, encrypted security, allows for Panduit PDUs to pass standard certified security scans
- Digital sensors not only allow for multiple sensors on the same bus, but also identify themselves to the controller to simplify setup and commissioning
- The intelligent PDUs feature an enhanced designed web interface which detects the type of device that you are on and automatically adjusts the screen for an optimal experience
- Meets demands of densely packed IT equipment in rack or cabinet space
- Optimal form factor enables efficient rack space utilization
- Easily identify phase to outlet banks to aid in fault isolation or load balancing
- Meets NEC requirements and installation guidelines for IT equipment
- A full breadth offering to seamlessly interoperate with existing building power wiring schemes
- Rack PDUs that have the ability for aggregate power monitoring and outlet level switching capabilities for individual outlets or a group of outlets
- Enabling power sequencing, rebooting equipment or restrict unauthorized use of individual outlets
Panduit P16E19M Key Specs
| Product Type | Monitored Switched PDU |
| Mount Orientation | Horizontal |
| Sub Brand | SmartZone |
| Plug Type | NEMA L6-30P |
| Input Voltage (V) | 208 |
| Amperage (A) | 30 |
| Number of Outlets | (12)C13, (4)C19 |
| Output Voltage (V) | 208 |
| Phase | Single Phase |
| Cable Length (ft.) | 10 |
| Cable Length (m) | 3 |
| Overall Depth (In.) | 10.62 |
| Overall Depth (mm) | 269 |
| Overall Width (In.) | 17.461 |
| Overall Width (mm) | 4443 |
| Overall Length (In.) | 3.425 |
| Overall Length (mm) | 86 |
| Power Rating (kW) | 5 |
| Standards Met | UL Listed |
Panduit P16E19M Data Sheets
| Catalog Cut Sheets | Cable Ties & Wire Markers Catalog | Download and View |
| Part Drawings | Pre-Printed Wire Markers Part Drawing | Download and View |
| Technical References | Thermal Transfer Printable Vinyl Coated Cloth Tape – GMC4 | Download and View |
