Brand: Panduit
|
SKU:
PAN-P18-10RM

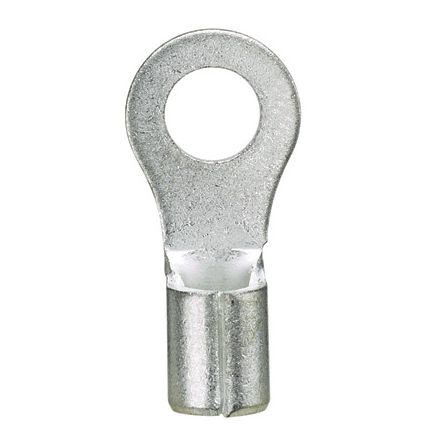

Panduit P18-10R-M | Pan-Term P18-10R-M Ring Terminal, Bare, 16-22 AWG, #10 Stud, PK1000
Regular price
$183.08
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P18-10R-M | Pan-Term P18-10R-M Ring Terminal, Bare, 16-22 A...
Regular price
$183.08
Unit price
Brand: Panduit
|
SKU:
PAN-P18-10RM
Regular price
$183.08
Unit price
Shipping calculated at checkout.
Description
Description
Panduit P18-10R-M | Pan-Term P18-10R-M Ring Terminal, Bare, 16-22 AWG, #10 Stud, PK1000
The P18-10R-M Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit P18-10R-M - TERMINAL-RING - RING TERMINAL NON-INSULATED
Specifications
Specifications
Panduit - P18-10R-M - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P18-10R-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P18-10R-M |
| Item Description | Pan-Term P18-10R-M Ring Terminal, Bare, 16-22 AWG, #10 Stud, PK1000 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.14 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 3.56 |
| Inside Diameter (In.) | 0.07 |
| Inside Diameter (mm) | 1.8 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.71 |
| Overall Length (mm) | 18 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - P18-10R-M - Package Information
| UPC | 07498380207 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.4190 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - P18-10R-M - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
