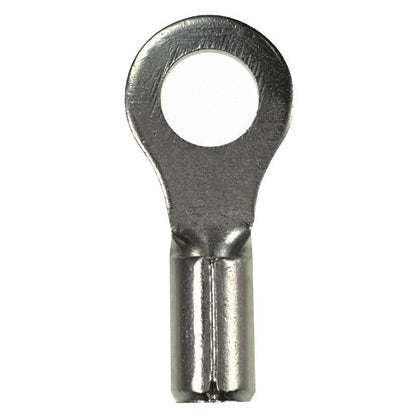

Panduit P18-10RHT6-M | Loose Piece Ring Terminal | UPC - 07498380547
Regular price
$265.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P18-10RHT6-M | Loose Piece Ring Terminal | UPC - 07498380547
Regular price
$265.74
Unit price
Brand: Panduit
|
SKU:
PAN-P18-10RHT6-M
Regular price
$265.74
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Terminal, Type P-RHT High Temperature Non-Insulated, Solid/Stranded Conductor, 22 to 16 AWG Conductor, #10 Stud, 0.71 in Length, Brazed Seam/Standard Barrel, 0.07 in ID x 0.14 in OD Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 2000 VAC, Specifications: 9/32 in L Wire Strip, 1/4 in Clearance, Non-Insulated, 650 deg F, Copper, TiN Coated, Silver
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit P18-10RHT6-M | Loose Piece Ring Terminal | UPC - 07498380547 Key Specs
| Stud Size | #10 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL 486A/B, and CSA 22.2 No.65 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Nickel-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 343 |
| Maximum Operating Temperature (°F) | 650 |
| Outer Diameter (In.) | 0.14 |
| Seam Type | Brazed |
Panduit P18-10RHT6-M | Loose Piece Ring Terminal | UPC - 07498380547 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #22-18 Barrel Non-Insulated Ring Tongue, High Temperature, 650 F | Download and View |
| Videos | BlackFin™ CT-2300 Video 16:9 BSN18-C | Download and View |
Panduit P18-10RHT6-M | Loose Piece Ring Terminal | UPC - 07498380547 Environmental Information
| Panduit's RoHS Statement | Download and View |
