Panduit P18-14F-M | Loose Piece Forks | UPC - 07498380507
Regular price
$272.09
Unit price
Description
Description

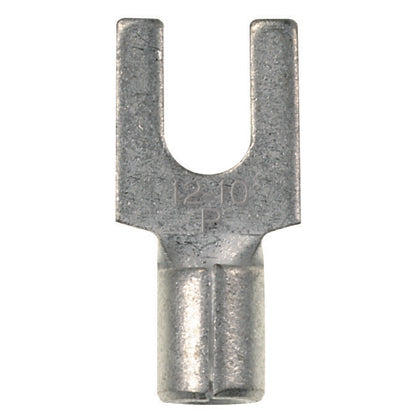

Panduit Pan-Term Fork Terminal, Loose Piece Non-Insulated, Series: P-F, Stranded Copper Conductor, 22 to 16 AWG Conductor, 1/4 in Stud, 0.88 in Length, Brazed Seam Barrel, Standard Fork Tongue, 0.44 in W Tongue, 2000 VAC, 0.28 in L Wire Strip, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
- Fork design provides for fast and easy installation, without the need to remove fastener
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit P18-14F-M | Loose Piece Forks | UPC - 07498380507 Key Specs
| Fork Type | Standard |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | M6 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
Panduit Panduit P18-14F-M | Loose Piece Forks | UPC - 07498380507 Environmental Information
| Panduit's RoHS Statement | Download and View |
