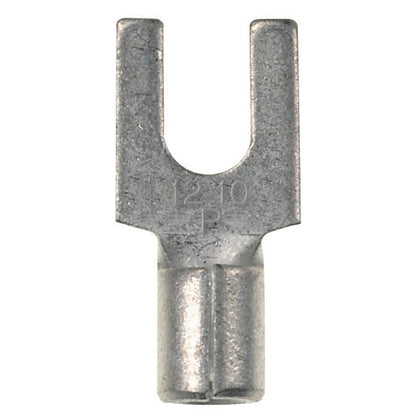

Panduit P18-6F-M | Pan-Term Loose Piece Forks
Description
Description
Fast, tool-free installation to simplify your electrical connections with our non-insulated fork terminal, its internal grip ensure secure results for various applications.
Fork Terminal, non-insulated, 22- 16 AWG, #6 stud size, bulk package.
Panduit Pan-Term Fork Terminal, Loose Piece Non-Insulated, Series: P-F, Stranded Copper Conductor, 22 to 16 AWG Conductor, #6 Stud, 0.63 in Length, Brazed Seam Barrel, 0.07 in ID x 0.14 in OD Barrel, Standard Fork Tongue, 0.3 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.21 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
Panduit - P18-6F-M - Features
- Fork design provides for fast and easy installation, without the need to remove fastener
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - P18-6F-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P18-6F-M |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Fork Type | Standard |
| Insulation Material | Non-Insulated |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 16 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| UPC | 07498380501 |
