Panduit P18-6RN-M | Pan-Term Ring Terminal
Description
Description

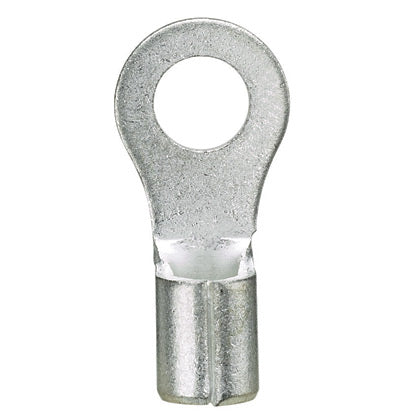

Our non-insulated ring terminal ensures secure, long-lasting connections in tight, narrow spaces with its strong grip and internal gripping teeth.
Ring Terminal, 22 " 16 AWG, #6 stud size, narrow tongue, non-insulated, bulk package.
Panduit Pan-Term Terminal, Type P-RN, Solid/Stranded Conductor, 22 to 16 AWG Conductor, #6 Stud, 0.6 in Length, Brazed Seam/Standard Barrel, 0.7 in ID x 0.14 in OD Barrel, Narrow Ring Tongue, 0.22 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 0.19 in Clearance, 302 deg F, Copper, Tin Plated, Silver
Panduit - P18-6RN-M - Features
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - P18-6RN-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P18-6RN-M |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Stud Size | #6 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.22 |
| Outer Diameter (mm) | 5.6 |
| Inside Diameter (In.) | 0.07 |
| UPC | 07498380199 |
