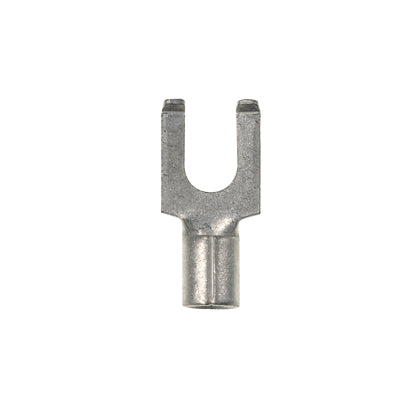

Panduit P18-8FF-C | Loose Piece Forks | UPC - 07498380700
Regular price
$60.05
Unit price
Brand: Panduit
|
SKU:
10044468
Regular price
$60.05
Unit price
Description
Description
Panduit Pan-Term Fork Terminal, Loose Piece Non-Insulated, Series: P-FF, Stranded Copper Conductor, 22 to 16 AWG Conductor, #8 Stud, 0.72 in Length, Brazed Seam Barrel, 0.07 in ID x 0.14 in OD Barrel, Flanged Fork Tongue, 0.31 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 1/4 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
Panduit Panduit P18-8FF-C | Loose Piece Forks | UPC - 07498380700 Key Specs
| Fork Type | Flanged Fork |
| Insulation Material | Non-Insulated |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Stud Size | #8 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
Panduit Panduit P18-8FF-C | Loose Piece Forks | UPC - 07498380700 Environmental Information
| Panduit's RoHS Statement | Download and View |
