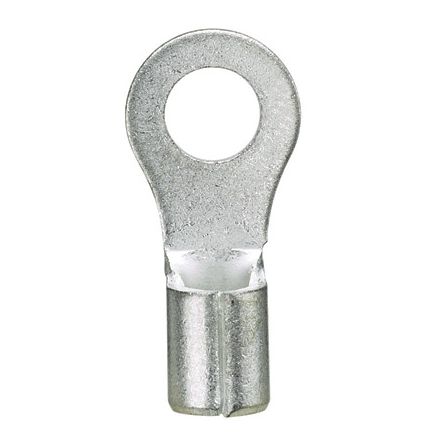

Panduit P18-8R-M | Pan-Term Ring Terminal
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
200743
Regular price
$1.46
Unit price
Description
Description
Panduit P18-8R-M | Pan-Term Ring Terminal
Simplify your electrical connections with our non-insulated ring terminal, featuring a secure ring tongue design for lasting performance in various wire sizes.
Panduit Pan-Term Terminal, Type P-R, Solid/Stranded Conductor, 22 to 16 AWG Conductor, #8 Stud, 0.71 in Length, Beveled Edge/Brazed Seam/Serrated/Standard Barrel, 0.7 in ID x 0.14 in OD Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 2000 VAC, 9/32 in L Wire Strip, 1/4 in Clearance, 302 deg F, Copper, Tin Plated, Silver
Panduit - P18-8R-M - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
Specifications
Specifications
Panduit - P18-8R-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P18-8R-M |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.31 |
| Outer Diameter (mm) | 7.9 |
| Inside Diameter (In.) | 0.07 |
| UPC | 07498380205 |
Panduit - P18-8R-M - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
