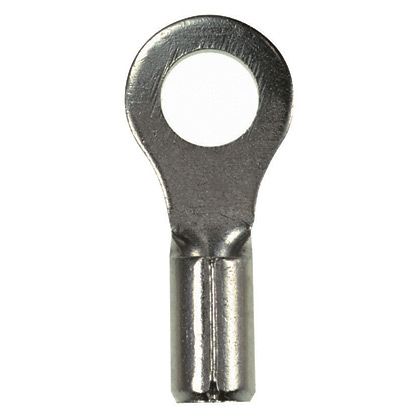

Panduit P18-8RHT6-C | Pan-Term P18-8RHT6-C Ring Terminal
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
10044613-EA
Regular price
$1.46
Unit price
Description
Description
Panduit P18-8RHT6-C | Pan-Term P18-8RHT6-C Ring Terminal
High Temperature Ring Terminal, 22 – 18 AWG, #8 stud size, non-insulated, standard package.
Specifications
Specifications
Panduit - P18-8RHT6-C - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P18-8RHT6-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P18-8RHT6-C |
| Item Description | Pan-Term P18-8RHT6-C Ring Terminal |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Nickel-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 343 |
| Maximum Operating Temperature (°F) | 650 |
| Outer Diameter (In.) | 0.31 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 7.9 |
| Inside Diameter (In.) | 0.07 |
| Inside Diameter (mm) | 1.8 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 0.71 |
| Overall Length (mm) | 18 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Thickness (In.) | 0.03 |
| Tongue Thickness (mm) | 0.8 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Nickel plated copper for temperatures up to 650°F (343°C) • Internal barrel serrations assure good wire contact and maximum tensile strength |
Brand Name - P18-8RHT6-C - Package Information
| UPC | 07498380536 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0076 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 0.0761 |
