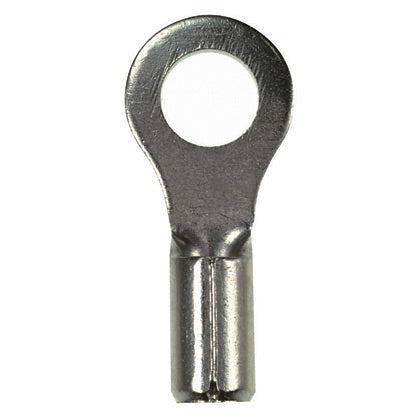

Panduit P18-8RHT6-M | Ring Terminal | UPC - 07498380546
Regular price
$284.11
Unit price
Brand: Panduit
|
SKU:
10044614
Regular price
$284.11
Unit price
Description
Description
Panduit Pan-Term Terminal, Type P-RHT High Temperature, Solid/Stranded Conductor, 22 to 16 AWG Conductor, #8 Stud, 0.71 in Length, Brazed Seam/Standard Barrel, Ring Tongue, 0.31 in W x 0.03 in THK Tongue, 2000 VAC, Ring Shape Enclosure, 650 deg F, Copper, Tin Plated, Silver, 0.31 in W
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Without insulation
Panduit Panduit P18-8RHT6-M | Ring Terminal | UPC - 07498380546 Key Specs
| Minimum Operating Temperature (°C) | 343 |
| Minimum Operating Temperature (°F) | 650 |
| Stud Size | #8 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #16 |
| Maximum Copper Conductor Size (AWG STR) | #16 |
| Maximum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #22 |
| Minimum Copper Conductor Size (AWG STR) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160, CT-260 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Silver |
Panduit Panduit P18-8RHT6-M | Ring Terminal | UPC - 07498380546 Environmental Information
| Panduit's RoHS Statement | Download and View |
