Brand: Panduit
|
SKU:
10044615

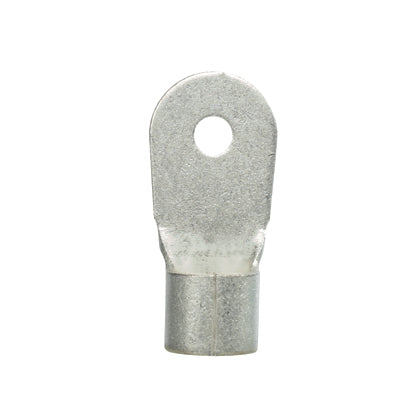

Panduit P2-10RHT6-X | Ring Terminal | UPC - 07498312802
Regular price
$33.48
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P2-10RHT6-X | Ring Terminal | UPC - 07498312802
Regular price
$33.48
Unit price
Description
Description
Panduit Ring Terminal, Type P-RHT High Temperature Non-Insulated, Solid/Stranded Conductor, 2 AWG Conductor, #10 Stud, 1.46 in Length, Brazed Seam/Internal Serration/Standard Barrel, 0.37 in ID x 0.48 in OD Barrel, Ring Tongue, 0.68 in W x 0.06 in THK Tongue, 2000 V, Specifications: 0.44 in Mounting Hole Size, Ring Shape Enclosure, 650 deg F, Copper, Tin Plated, Silver
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Panduit Panduit P2-10RHT6-X | Ring Terminal | UPC - 07498312802 Key Specs
| Minimum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°F) | 302 |
| Stud Size | #10 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG STR) | #2 |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Maximum Metric Conductor Size (mm²) | 35 |
| Wire Strip Length (In.) | 0.44 |
| Wire Strip Length (mm) | 11.1 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Silver |
| Barrel Length (In.) | 0.56 |
| Barrel Length (mm) | 14.2 |
| Flammability Rating | UL 587-H |
| Insulation Diameter (In.) | 0.48 |
| Insulation Diameter (mm) | 12.2 |
Panduit Panduit P2-10RHT6-X | Ring Terminal | UPC - 07498312802 Environmental Information
| Panduit's RoHS Statement | Download and View |
