Brand: Panduit
|
SKU:
920018

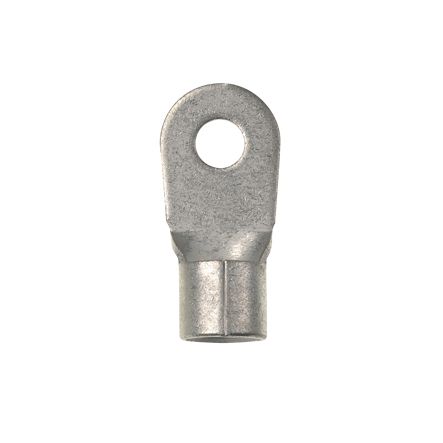

Panduit P2-12R-T | Ring Terminal | UPC - 07498387054
Regular price
$444.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P2-12R-T | Ring Terminal | UPC - 07498387054
Regular price
$444.51
Unit price
Description
Description

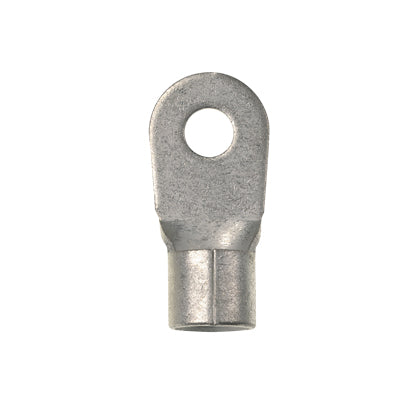

Panduit Pan-Term Ring Terminal, Solid/Stranded Conductor, 2 AWG Conductor, 1/2 in Stud, 1.55 in Length, Brazed Seam Barrel, Ring Tongue, 2000 VAC, Non-Insulated, Ring Shape Enclosure, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic, 0.86 in W
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit P2-12R-T | Ring Terminal | UPC - 07498387054 Key Specs
| Minimum Operating Temperature (°C) | 150 |
| Minimum Operating Temperature (°F) | 302 |
| Stud Size | 1/2" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG STR) | #2 |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Maximum Metric Conductor Size (mm²) | 35 |
| Wire Strip Length (In.) | 0.44 |
| Wire Strip Length (mm) | 11.1 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Silver |
| Barrel Length (In.) | 0.56 |
| Barrel Length (mm) | 14.2 |
| Flammability Rating | UL 587-H |
| Insulation Diameter (In.) | 0.48 |
| Insulation Diameter (mm) | 12.2 |
Panduit P2-12R-T | Ring Terminal | UPC - 07498387054 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #2 Barrel Non-Insulated Ring Tongue | Download and View |
Panduit P2-12R-T | Ring Terminal | UPC - 07498387054 Environmental Information
| Panduit's RoHS Statement | Download and View |
