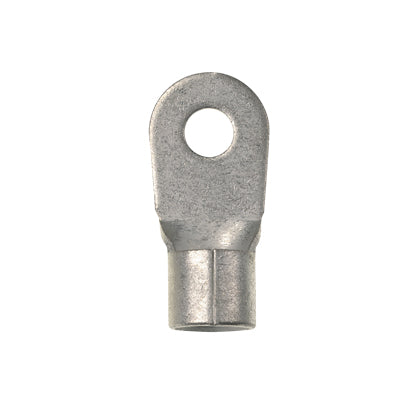

Panduit P2-12R-X | Ring Terminal | UPC - 07498387049
Regular price
$52.89
Unit price
Brand: Panduit
|
SKU:
10044617
Regular price
$52.89
Unit price
Description
Description
Panduit Pan-Term Terminal, Type P-R, Stranded Conductor, 2 AWG Conductor, 1/2 in Stud, 1.55 in Length, Brazed Seam/Standard Barrel, 0.37 in ID x 0.48 in OD Barrel, Ring Tongue, 0.86 in W x 0.06 in THK Tongue, 2000 VAC, 7/16 in L Wire Strip, 0.58 in Clearance, 302 deg F, Copper, Tin Plated, Metallic
- Insulation support helps to prevent wire damage in bending applications
- Ring tongue design assures a secure connection in high vibration applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit Panduit P2-12R-X | Ring Terminal | UPC - 07498387049 Key Specs
| Stud Hole Size (In.) | 13/25 |
| Stud Hole Size (mm) | 13.2 |
| Stud Size | 1/2" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #2 |
| Maximum Copper Conductor Size (AWG STR) | #2 |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Wire Strip Length (In.) | 0.44 |
| Wire Strip Length (mm) | 11.2 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Length (In.) | 0.56 |
| Barrel Length (mm) | 14.2 |
Panduit Panduit P2-12R-X | Ring Terminal | UPC - 07498387049 Environmental Information
| Panduit's RoHS Statement | Download and View |
