Panduit P2-12RHT6-X | Ring Terminal | UPC - 07498312808
Regular price
$26.68
Unit price
Brand: Panduit
|
SKU:
10044616
Regular price
$26.68
Unit price
Description
Description

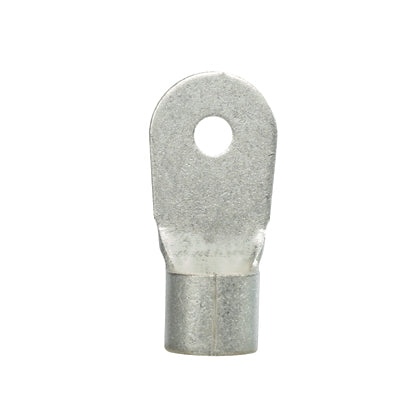

High Temperature Ring Terminal, 2 AWG, 1/2" stud size, non-insulated.
Panduit Panduit P2-12RHT6-X | Ring Terminal | UPC - 07498312808 Key Specs
| Stud Hole Size (In.) | 13/25 |
| Stud Hole Size (mm) | 13.2 |
| Stud Size | 1/2" |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG SOL) | #2 |
| Maximum Copper Conductor Size (AWG STR) | #2 |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Wire Strip Length (In.) | 0.44 |
| Wire Strip Length (mm) | 11.2 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Nickel-Plated |
| Color Code | Metallic |
| Barrel Length (In.) | 0.56 |
| Barrel Length (mm) | 14.2 |
| Insulation Diameter (In.) | 0.48 |
Panduit Panduit P2-12RHT6-X | Ring Terminal | UPC - 07498312808 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - P18-6RHT6-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A41744-02P2-RHT6 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit Panduit P2-12RHT6-X | Ring Terminal | UPC - 07498312808 Environmental Information
| Panduit's RoHS Statement | Download and View |
