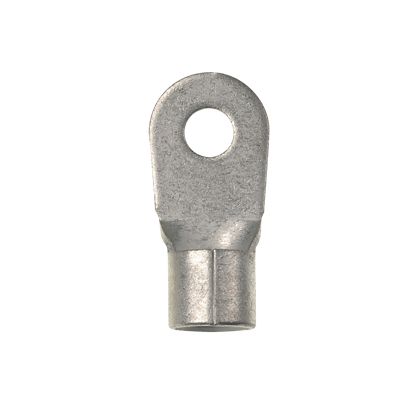

Panduit P2-14R-X | Pan-Term P2-14R-X Ring Terminal
Regular price
$44.77
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P2-14R-X | Pan-Term P2-14R-X Ring Terminal
Regular price
$44.77
Unit price
Description
Description
Panduit P2-14R-X | Pan-Term P2-14R-X Ring Terminal
Ring terminal, large wire, 2 AWG, 1/4" stud size, non-insulated, standard package.
Panduit - P2-14R-X - Features
- Designed for use with #8 - #2 AWG copper wire
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Maximum recommended operating temperature 302F (150C)
- Technical Info: UL Listed 587H E52164; CSA Certified LR31212
Specifications
Specifications
Panduit - P2-14R-X - Product Categories
- Communications
- Communications
- Communications
- Wire Termination
- Ring Terminals
Panduit - P2-14R-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P2-14R-X |
| Item Description | Pan-Term P2-14R-X Ring Terminal |
| Stud Hole Size (In.) | 1/4" |
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Minimum Wire Size (AWG) | #2 |
| Minimum Copper Conductor Size (AWG) | #2 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.48 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 12.2 |
| Inside Diameter (In.) | 0.37 |
| Inside Diameter (mm) | 9.4 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.55 |
| Overall Length (mm) | 39.4 |
| Overall Width (In.) | 0.86 |
| Overall Width (mm) | 21.8 |
| Tongue Length (In.) | 1.12 |
| Tongue Length (mm) | 28.4 |
| Tongue Thickness (In.) | 0.06 |
| Tongue Thickness (mm) | 1.5 |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Packaging Type | Bottle |
| Product Type | Ring Terminal |
| For Use With | CT-1701, CT-2600 (CD-2600-P2) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
Panduit - P2-14R-X - Package Information
| UPC | 07498387046 |
|---|---|
| Std. Pkg. Qty. | 10 |
| Std. Pkg. Volume (cf) | 0.0040 |
| Std. Ctn. Qty. | 100 |
| Std. Ctn. Volume (cf) | 0.0398 |
