Panduit P2-38R-T | Pan-Term Ring Terminal, Bare, 2 AWG, 3/8" S...
Regular price
$390.34
Unit price
Brand: Panduit
|
SKU:
P2-38R-T
Regular price
$390.34
Unit price
Description
Description

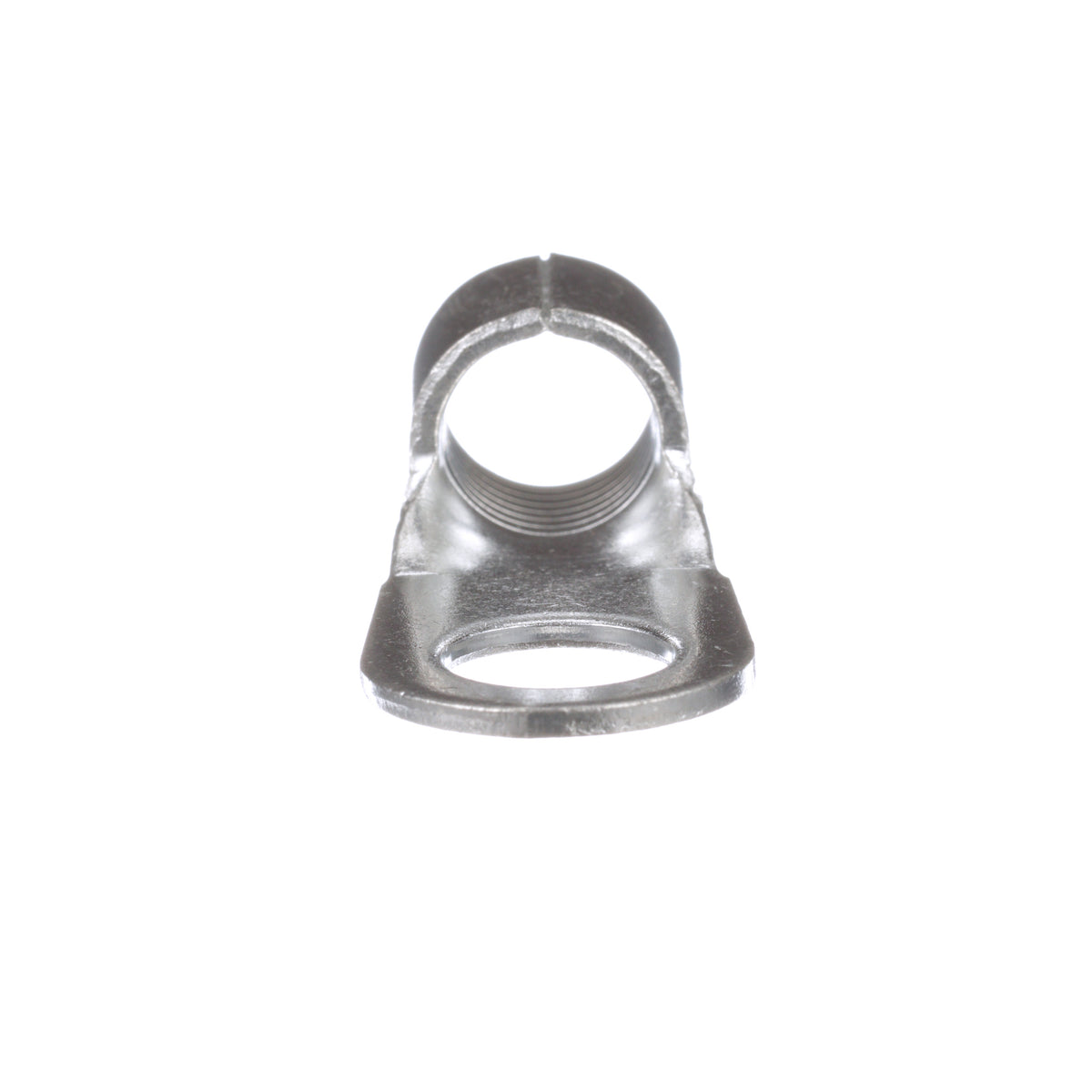

Panduit P2-38R-T | Pan-Term Ring Terminal, Bare, 2 AWG, 3/8" Stud, PK200
Simplify your electrical connections with our non-insulated ring terminal, featuring a secure ring tongue design for lasting performance in various wire sizes.
Panduit Pan-Term Ring Terminal, Type P-R Non-insulated, Stranded Conductor, 2 AWG Conductor, 3/8 in Stud, 1.46 in Length, Brazed Seam/Standard Barrel, 0.37 in ID x 0.48 in OD Barrel, Ring Tongue, 0.68 in W x 0.06 in THK Tongue, 2000 VAC, 7/16 in L Wire Strip, 0.58 in Clearance, 0.46 in Mounting Hole Size, 302 deg F, Copper, TiN Coated, Metallic
Panduit - P2-38R-T - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - P2-38R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P2-38R-T |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 2 |
| Minimum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | 2 |
| Minimum Wire Size (AWG) | #2 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.48 |
| Outer Diameter (mm) | 12.2 |
| Inside Diameter (In.) | 0.37 |
| Inside Diameter (mm) | 9.4 |
| UPC | 07498387053 |
Panduit - P2-38R-T - Videos
| Panduit P2-38R-T Video 1 | Click to View |
|---|
