Brand: Panduit
|
SKU:
919994-EA

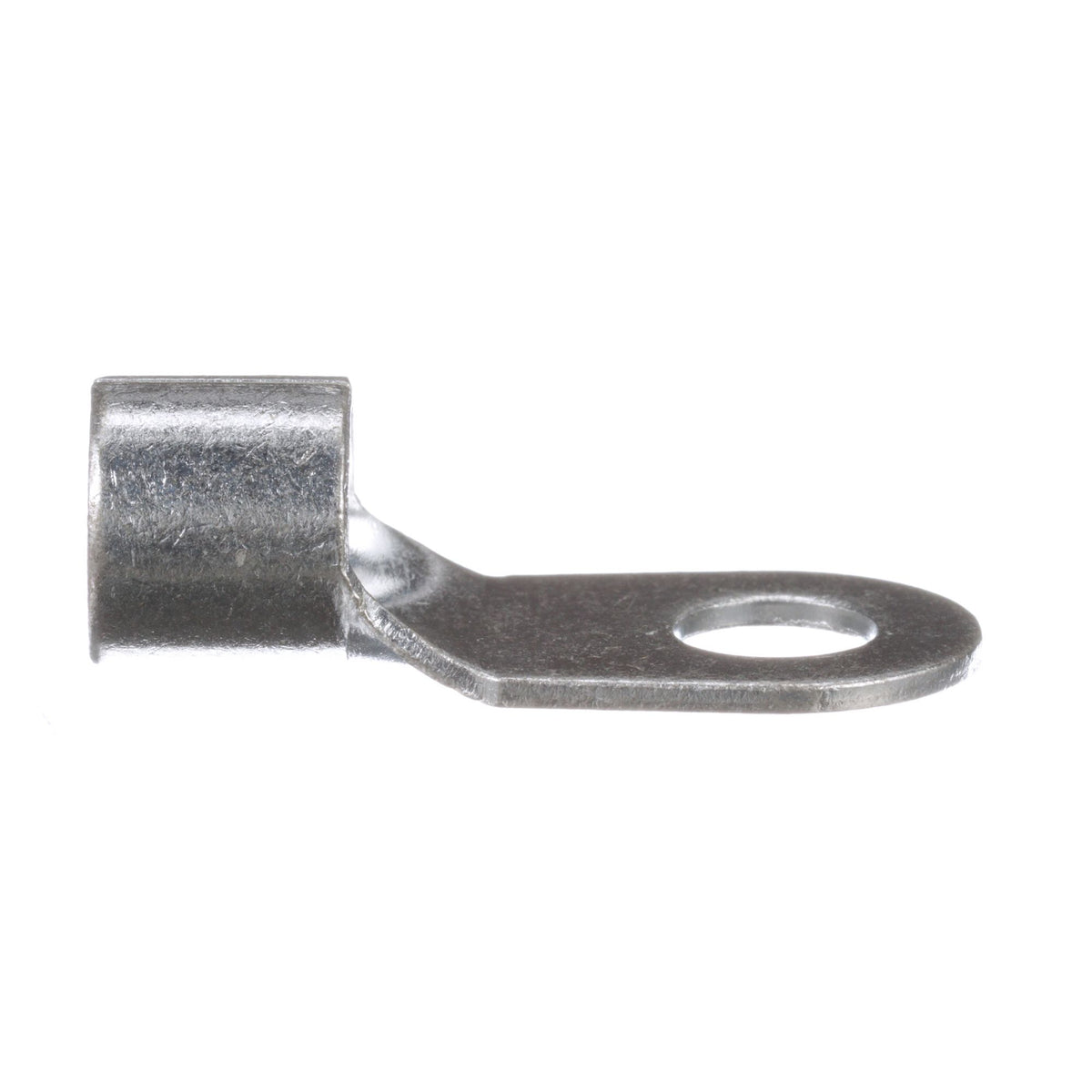

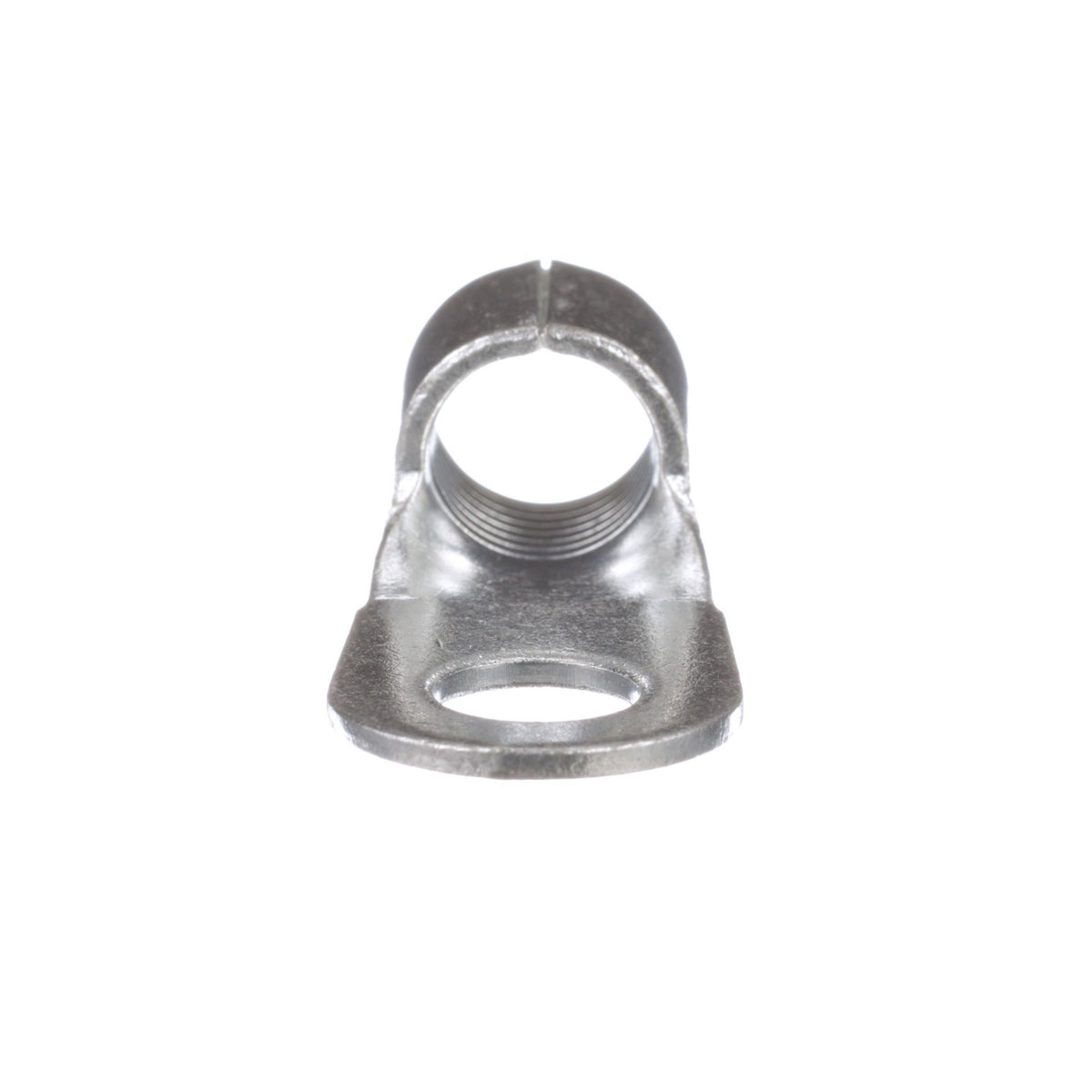

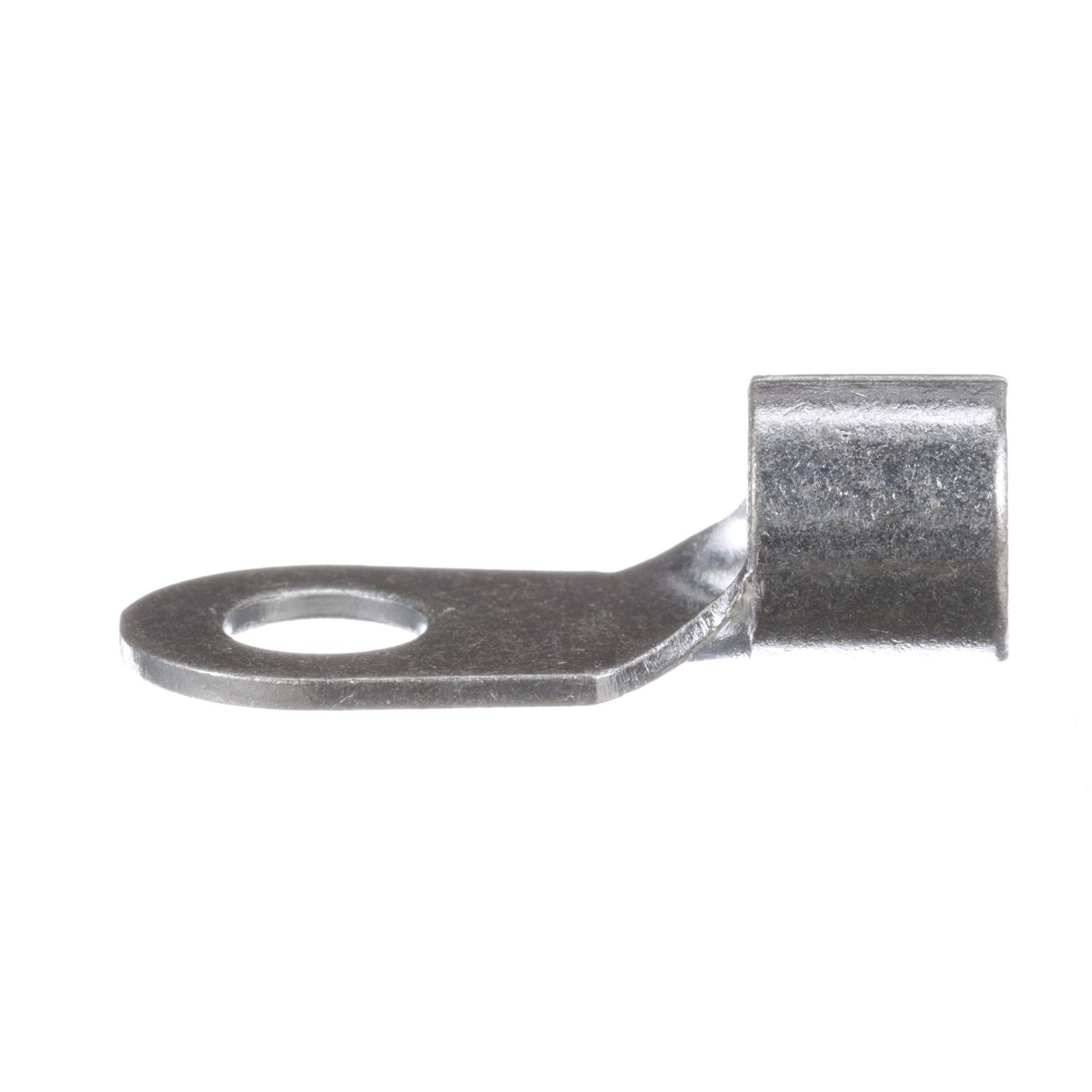

Panduit P2-56R-T | Pan-Term P2-56R-T Ring Terminal, Bare, 2 AWG, 5/16" Stud, PK200
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P2-56R-T | Pan-Term P2-56R-T Ring Terminal, Bare, 2 AWG, 5/...
Regular price
$3.00
Unit price
Description
Description
Panduit P2-56R-T | Pan-Term P2-56R-T Ring Terminal, Bare, 2 AWG, 5/16" Stud, PK200
The P2-56R-T Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit P2-56R-T - TERMINAL - TERMINAL RING NON INSULATED
Specifications
Specifications
Panduit - P2-56R-T - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P2-56R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P2-56R-T |
| Item Description | Pan-Term P2-56R-T Ring Terminal, Bare, 2 AWG, 5/16" Stud, PK200 |
| Stud Hole Size (In.) | 5/16" |
| Stud Hole Size (mm) | 8 |
| Stud Size | 5/16" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Minimum Wire Size (AWG) | #2 |
| Minimum Copper Conductor Size (AWG) | #2 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.48 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 12.2 |
| Inside Diameter (In.) | 0.37 |
| Inside Diameter (mm) | 9.4 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37.1 |
| Overall Width (In.) | 0.68 |
| Overall Width (mm) | 17.3 |
| Tongue Thickness (In.) | 0.06 |
| Tongue Thickness (mm) | 1.5 |
| Tongue Width (In.) | 0.68 |
| Tongue Width (mm) | 17.3 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-1701, CT-2600 (CD-2600-P2) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - P2-56R-T - Package Information
| UPC | 07498387052 |
|---|---|
| Standard Package Quantity | 200 |
| Standard Package Volume (cf) | 0.8132 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - P2-56R-T - Videos
| Video 1 | Click to View |
|---|
