Brand: Panduit
|
SKU:
10044625
Panduit P2-56RHT6-X | Ring Terminal | UPC - 07498312811
Regular price
$33.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P2-56RHT6-X | Ring Terminal | UPC - 07498312811
Regular price
$33.95
Unit price
Description
Description

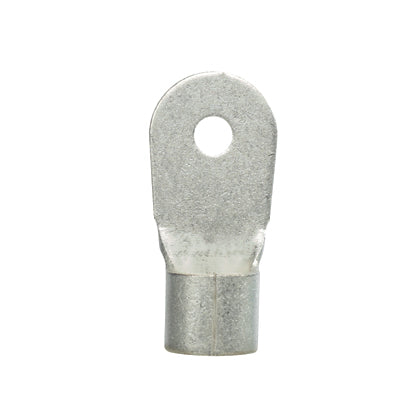

Panduit Pan-Term Ring Terminal, High Temperature Non-Insulated, Series: P-RHT, Stranded Conductor, 2 AWG Conductor, 5/16 in Stud, 1.46 in Length, Brazed Seam Barrel, 0.37 in ID x 0.48 in OD Barrel, Ring Tongue, 0.68 in W x 0.06 in THK Tongue, 2000 VAC, 7/16 in L Wire Strip, 0.58 in Clearance, Standard Barrel Configuration, 650 deg F, Copper, Nickel Plated, Metallic
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Panduit Panduit P2-56RHT6-X | Ring Terminal | UPC - 07498312811 Key Specs
| Stud Hole Size (In.) | 33/100 |
| Stud Hole Size (mm) | 8.4 |
| Stud Size | 5/16" |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG SOL) | #2 |
| Maximum Copper Conductor Size (AWG STR) | #2 |
| Maximum Copper Conductor Size (AWG) | #2 |
| Maximum Wire Size (AWG) | #2 |
| Wire Strip Length (In.) | 0.46 |
| Wire Strip Length (mm) | 11.7 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Nickel-Plated |
| Color Code | Metallic |
| Barrel Length (In.) | 0.56 |
| Barrel Length (mm) | 14.2 |
Panduit Panduit P2-56RHT6-X | Ring Terminal | UPC - 07498312811 Environmental Information
| Panduit's RoHS Statement | Download and View |
