Brand: Panduit
|
SKU:
10044471
Panduit P22-4F-C | Loose Piece Forks | UPC - 07498389044
Regular price
$36.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P22-4F-C | Loose Piece Forks | UPC - 07498389044
Regular price
$36.40
Unit price
Description
Description

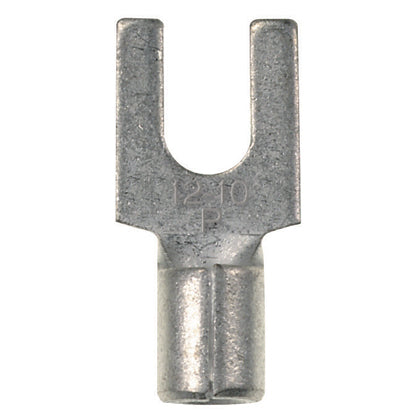

Panduit Pan-Term Fork Terminal, Loose Piece Non-Insulated, Series: P-F, Stranded Copper Conductor, 26 to 22 AWG Conductor, #4 Stud, 0.49 in Length, Brazed Seam Barrel, 0.04 in ID x 0.08 in OD Barrel, Standard Fork Tongue, 0.2 in W x 0.02 in THK Tongue, 2000 VAC, 3/16 in L Wire Strip, 0.2 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
- Fork design provides for fast and easy installation, without the need to remove fastener
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Non-expanded insulation
Panduit Panduit P22-4F-C | Loose Piece Forks | UPC - 07498389044 Key Specs
| Fork Type | Standard |
| Insulation Material | Non-Insulated |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #22 |
| Maximum Copper Conductor Size (AWG STR) | #22 |
| Maximum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | #22 |
| Minimum Wire Size (AWG) | #26 |
| Minimum Copper Conductor Size (AWG SOL) | #26 |
| Minimum Copper Conductor Size (AWG STR) | #26 |
| Minimum Copper Conductor Size (AWG) | #26 |
| Maximum Metric Conductor Size (mm²) | 0.5 |
| Minimum Metric Conductor Size (mm²) | 0.1 |
| Stud Size | #4 |
| Wire Strip Length (In.) | 0.19 |
| Wire Strip Length (mm) | 4.7 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
Panduit Panduit P22-4F-C | Loose Piece Forks | UPC - 07498389044 Environmental Information
| Panduit's RoHS Statement | Download and View |
