Brand: Panduit
|
SKU:
PAN-P22-6F-C
Panduit P22-6F-C | Pan-Term P22-6F-C Loose Piece Forks
Regular price
$45.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P22-6F-C | Pan-Term P22-6F-C Loose Piece Forks
Regular price
$45.69
Unit price
Description
Description

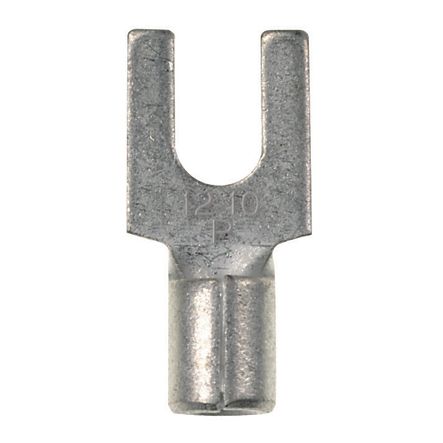

Panduit P22-6F-C | Pan-Term P22-6F-C Loose Piece Forks
Fork Terminal, non-insulated, 26- 22 AWG, #6 stud size, standard package.
Panduit P22-6F-C Fork Terminal, Non-Insulated, 26, 22 AWG, #6 Stud Size, Pack of 100
Specifications
Specifications
Panduit - P22-6F-C - Product Categories
- Wire Termination
- Fork Terminals
Panduit - P22-6F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P22-6F-C |
| Item Description | Pan-Term P22-6F-C Loose Piece Forks |
| Fork Type | Standard |
| Insulation Material | Non-Insulated |
| Insulation Type | Non-Insulated |
| Maximum Copper Conductor Size (AWG SOL) | #22 |
| Maximum Copper Conductor Size (AWG STR) | #22 |
| Maximum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | #22 |
| Minimum Wire Size (AWG) | #26 |
| Minimum Copper Conductor Size (AWG SOL) | #26 |
| Minimum Copper Conductor Size (AWG STR) | #26 |
| Minimum Copper Conductor Size (AWG) | #26 |
| Maximum Metric Conductor Size (mm²) | 0.5 |
| Minimum Metric Conductor Size (mm²) | 0.1 |
| Stud Size | #6 |
| Wire Strip Length (In.) | 3/16 |
| Wire Strip Length (mm) | 4.8 |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Base Material | Copper |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Type | Standard |
| Barrel Length (In.) | 0.24 |
| Barrel Length (mm) | 6 |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Seam Type | Brazed |
| Outer Diameter (In.) | 0.08 |
| Outer Diameter (mm) | 2 |
| Stud Hole Size (In.) | #6 |
| Stud Hole Size (mm) | 3.5 |
| Inside Diameter (In.) | 0.04 |
| Inside Diameter (mm) | 1 |
| Overall Length (In.) | 0.59 |
| Overall Length (mm) | 15 |
| Overall Width (In.) | 0.25 |
| Overall Width (mm) | 6.4 |
| Tongue Length (In.) | 0.36 |
| Tongue Length (mm) | 9 |
| Sub Brand | Pan-Term |
| Tongue Thickness (In.) | 0.02 |
| Tongue Thickness (mm) | 0.5 |
| Tongue Width (In.) | 0.25 |
| Tongue Width (mm) | 6.4 |
| Packaging Type | Bottle |
| Product Type | Fork Terminal |
| For Use With | CT-100A (POCKET B), CT-200 |
Panduit - P22-6F-C - Package Information
| UPC | 07498389046 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0697 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
