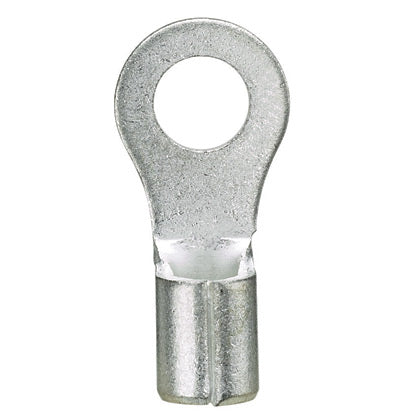

Panduit Pan-Term Ring Terminal, Loose Piece Non-Insulated, Series: P Series, Solid/Stranded Conductor, 26 to 22 AWG Conductor, #6 Stud, 0.52 in Length, Brazed Seam Barrel, 0.05 in ID x 0.08 in OD Barrel, Ring Tongue, 0.2 in W x 0.02 in THK Tongue, 2000 VAC, 3/16 in L Wire Strip, 0.16 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Panduit P22-6R-C | Ring Terminal | UPC - 07498389024 Key Specs
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 3.9 |
| Stud Size | #6 |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG SOL) | #22 |
| Maximum Copper Conductor Size (AWG STR) | #22 |
| Maximum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | #22 |
| Minimum Wire Size (AWG) | #26 |
| Minimum Copper Conductor Size (AWG SOL) | #26 |
| Minimum Copper Conductor Size (AWG STR) | #26 |
| Minimum Copper Conductor Size (AWG) | #26 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.3 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Length (In.) | 0.21 |
