Brand: Panduit
|
SKU:
917903
Panduit P22B05M | Basic Pdu, 20Amp, 120V, (20)C13, (2)C19, Nema L5-20P
Regular price
$603.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P22B05M | Basic Pdu, 20Amp, 120V, (20)C13, (2)C19, Nema L5-20P
Regular price
$603.33
Unit price
Description
Description
Panduit P22B05M | Basic Pdu, 20Amp, 120V, (20)C13, (2)C19, Nema L5-20P

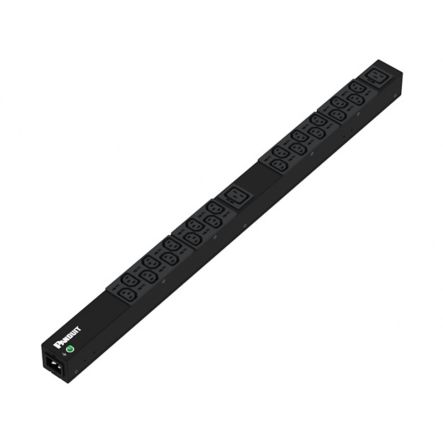

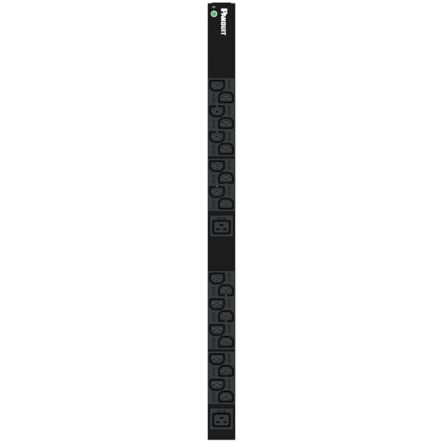

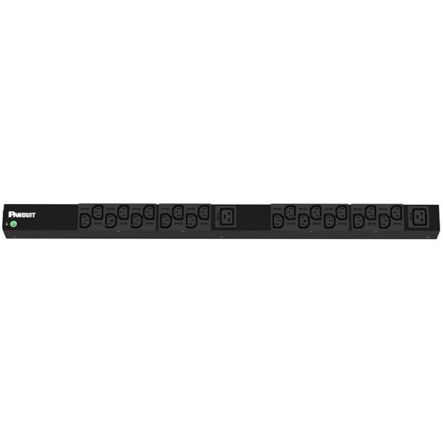

The SmartZone G5 Basic PDU features (20) C13 and (2) C19 outlets. It is a 20 amp, 120 V, single phase PDU with a NEMA L5-20P input plug and a 10 foot (3m) power cord. The PDU is black.
Specifications
Specifications
Panduit - P22B05M - Product Categories
- Power, Environmental, Security & Connectivity Hardware
- Server Rack Power Distribution Units (PDUs)
Panduit - P22B05M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P22B05M |
| Item Description | Basic Pdu, 20Amp, 120V, (20)C13, (2)C19, Nema L5-20P |
| Note | NA Only |
| Product Type | Basic PDU |
| Mount Orientation | Vertical |
| Sub Brand | SmartZone |
| Plug Type | NEMA L5-20P |
| Input Voltage (V) | 120 |
| Amperage (A) | 20 |
| Number of Outlets | (20)C13, (2)C19 |
| Output Voltage (V) | 120 |
| Phase | Single Phase |
| Cable Length (ft.) | 10 |
| Cable Length (m) | 3 |
| Overall Depth (In.) | 2.1 |
| Overall Depth (mm) | 53 |
| Overall Height (In.) | 32 |
| Overall Height (mm) | 817 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 52 |
| Power Rating (kW) | 1.9 |
| Standards Met | UL Listed |
| Rack PDU Type | Basic |
Panduit - P22B05M - Package Information
| UPC | 61305626349 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.7639 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
