Brand: Panduit
|
SKU:
10587110

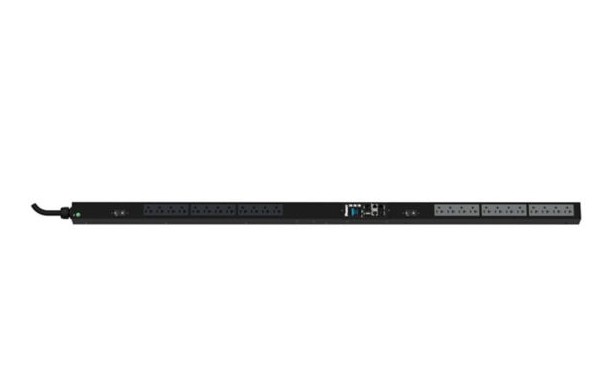

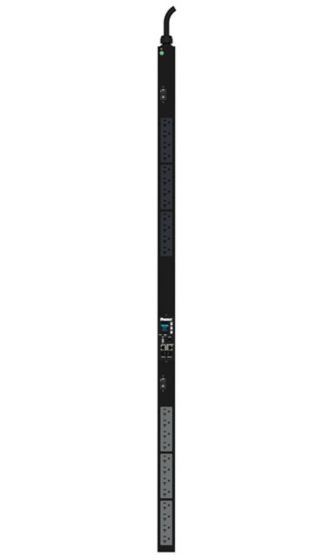

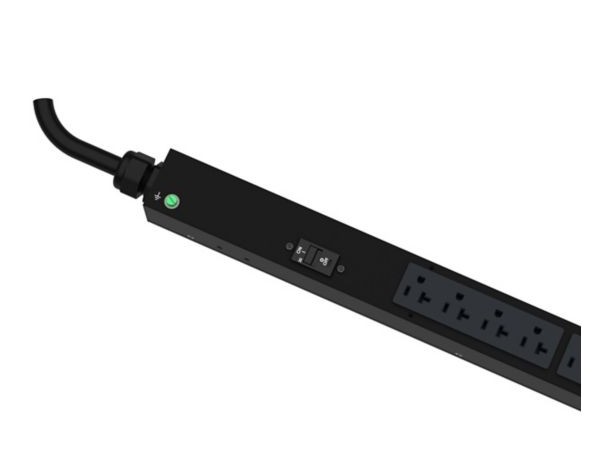

Panduit P24D23G | SmartZone G6 Metered Input PDU, 30A, (24) 5-20R Outlets, NEMA L5-30P Input
Regular price
$1,780.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P24D23G | SmartZone G6 Metered Input PDU, 30A, (24) 5-20R O...
Regular price
$1,780.43
Unit price
Description
Description
Panduit P24D23G | SmartZone G6 Metered Input PDU, 30A, (24) 5-20R Outlets, NEMA L5-30P Input
Take control with our G6 Intelligent PDU offering. Manage power at the outlet level, reboot equipment remotely, and prevent unauthorized use, ensuring your data center runs smoothly.
Specifications
Specifications
Panduit - P24D23G - Specifications
| Note | USA, Canada |
|---|---|
| Includes | Mounting Hardware |
| Product Type | PDU |
| Mount Orientation | Vertical |
| PDU Form Factor | 0U MID |
| Sub Brand | G6 |
| Rack PDU Type | Monitored Input |
| Plug Type | NEMA L5-30P |
| Number of Circuit Breakers | 2 |
| Input Voltage (V) | 120 |
| Input Amperage (A) | 30 |
| Phase | Single-Phase |
| Frequency Compatibility (Hz) | 50/60 |
| Current Measurement Accuracy (%) | ±1% |
| Voltage Measurement Accuracy (%) | ±1% |
| Power Measurement Accuracy (%) | ±1% |
| Input Cord Length (ft.) | 10 |
| Input Cord Length (m) | 3 |
| Output Receptacles | (24)5-20R |
| Output Voltage (V) | 120 |
| Front Panel Display | Use display to set IP address, update firmware, quick configure, rotate display, balance loads across phases, view alarms, read current, voltage, power and energy on the device |
Panduit - P24D23G - Package Includes
| UPC | 61305688771 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 1.4778 |
Panduit - P24D23G - Videos
| Panduit P24D23G Video | Click to View |
|---|
