Panduit P24F04M | MPO PDU, 50AMP, 208 V, (12)C13, (12)C19, CS8365C
Regular price
$3,833.84
Unit price
Brand: Panduit
|
SKU:
975938
Regular price
$3,833.84
Unit price
Description
Description

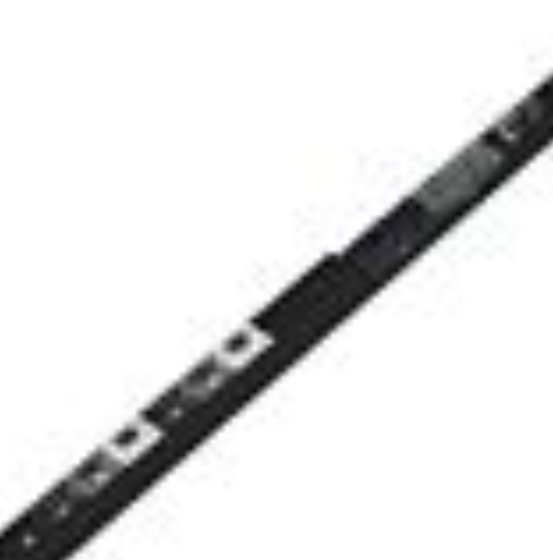

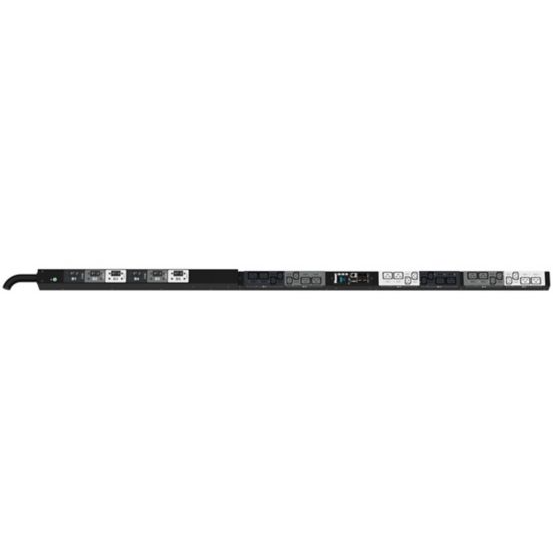

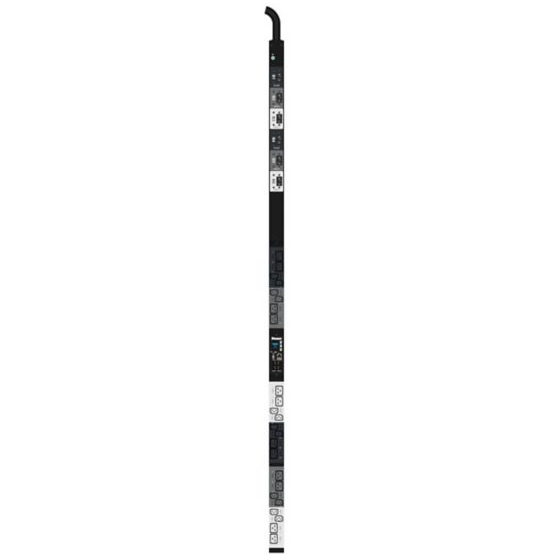

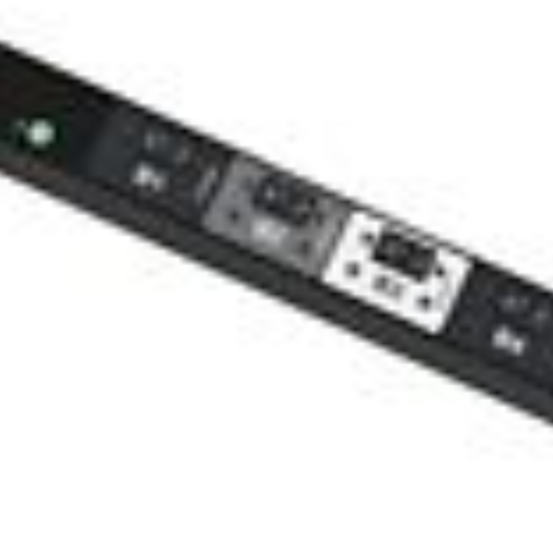

Panduit P24F04M | MPO PDU, 50AMP, 208 V, (12)C13, (12)C19, CS8365C
The SmartZone G5 Monitored Per Outlet PDU features (12) C13 and (12) C19 outlets. It is a 50 amp, 208 V, three phase PDU with a CS8365C input plug and a 10 foot (3m) power cord. The PDU is black.
Specifications
Specifications
Panduit - P24F04M - Product Categories
- Power, Environmental, Security & Connectivity Hardware
- Server Rack Power Distribution Units (PDUs)
Panduit - P24F04M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P24F04M |
| Item Description | MPO PDU, 50AMP, 208 V, (12)C13, (12)C19, CS8365C |
| Note | NA Only |
| Product Type | Monitored Per Outlet PDU |
| Mount Orientation | Vertical |
| Sub Brand | SmartZone |
| Plug Type | CS8365C |
| Input Voltage (V) | 208 |
| Amperage (A) | 50 |
| Number of Outlets | (12)C13, (12)C19 |
| Output Voltage (V) | 208 |
| Phase | 3 Phase |
| Cable Length (ft.) | 10 |
| Cable Length (m) | 3 |
| Overall Depth (In.) | 2.1 |
| Overall Depth (mm) | 53 |
| Overall Height (In.) | 69 |
| Overall Height (mm) | 1750 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 52 |
| Power Rating (kW) | 14.4 |
| Standards Met | UL Listed |
| Rack PDU Type | Monitored Per Outlet |
Panduit - P24F04M - Package Information
| UPC | 61305631637 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.7026 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
