Panduit P30B13M | Basic PDU, 16A 400V, (24) C13 & (6) C19 Outle...
Regular price
$590.48
Unit price
Brand: Panduit
|
SKU:
959736
Regular price
$590.48
Unit price
Description
Description

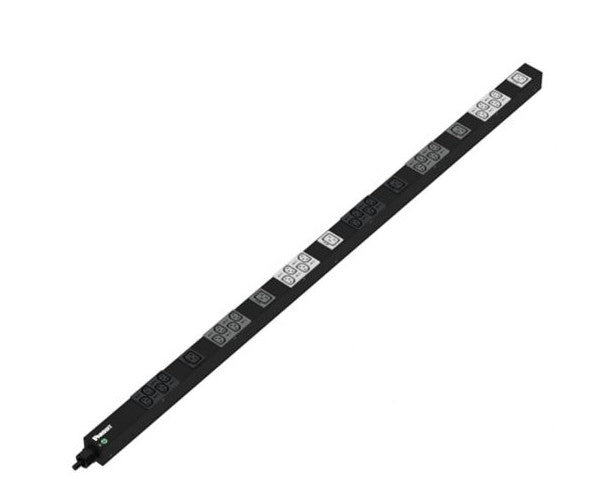

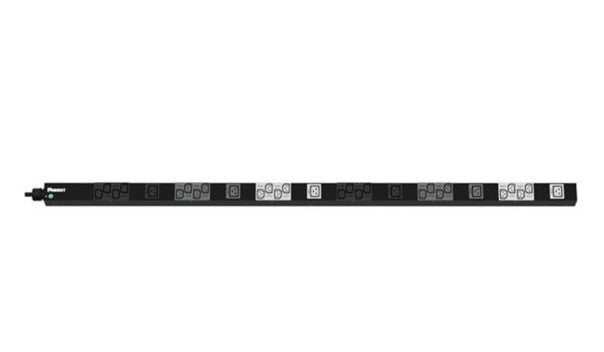

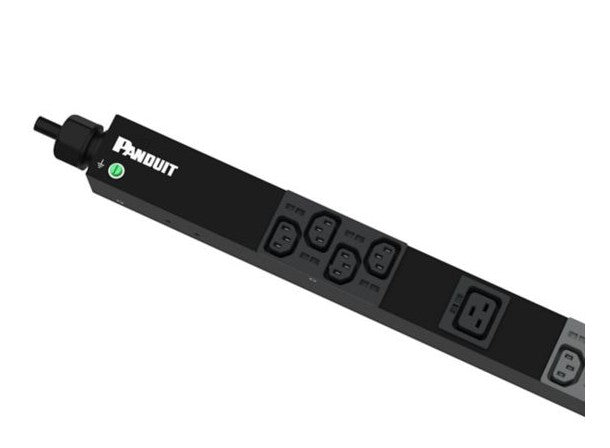

Panduit P30B13M | Basic PDU, 16A 400V, (24) C13 & (6) C19 Outlets, IP44
Maximize your data center rack space with our basic PDU offering. It has a compact design and high outlet density, while also offering flexible mounting options and efficient power distribution.
Specifications
Specifications
Panduit - P30B13M - Specifications
| Note | CE Compliant Only |
|---|---|
| Includes | Mounting Hardware |
| Product Type | PDU |
| Mount Orientation | Vertical |
| PDU Form Factor | 0U MID |
| Sub Brand | G5 |
| Rack PDU Type | Basic |
| Plug Type | IEC 60309 3P+N+E 6h 16A (IP44) |
| Number of Circuit Breakers | 0 |
| Input Voltage (V) | 415 |
| Input Amperage (A) | 16 |
| Phase | 3-Phase |
| Frequency Compatibility (Hz) | 50/60 |
| Input Cord Length (ft.) | 10 |
| Input Cord Length (m) | 3 |
| Output Receptacles | (24)C13, (6)C19 |
| Output Voltage (V) | 230 |
| Front Panel Display | No |
| Apparent Power (kVA) | 11 |
| Network Monitoring Port | No |
| SNMP Compatibility | No |
Panduit - P30B13M - Package Includes
| UPC | 61305626376 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 1.5741 |
