Brand: Panduit
|
SKU:
10187801
Panduit P36E04M | MS PDU, 30AMP, 415V, (24)C13, (12)C19, IEC 60309 3P+N+E 6h 30A (IP44)
Regular price
$4,164.88
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P36E04M | MS PDU, 30AMP, 415V, (24)C13, (12)C19, IEC 60309 ...
Regular price
$4,164.88
Unit price
Description
Description
Panduit P36E04M | MS PDU, 30AMP, 415V, (24)C13, (12)C19, IEC 60309 3P+N+E 6h 30A (IP44)

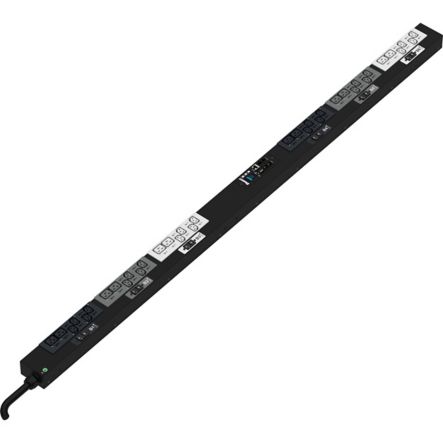

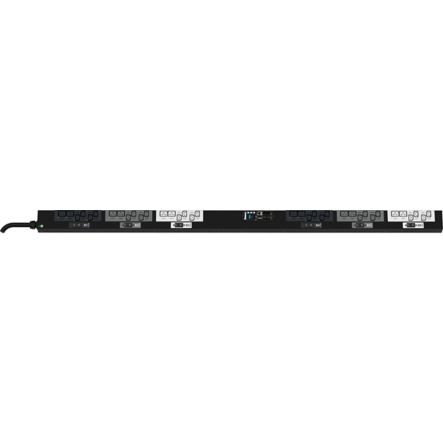

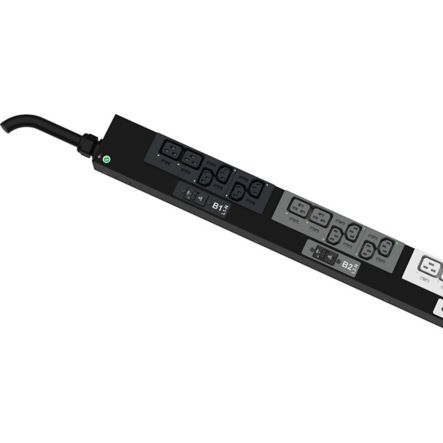

The SmartZone G5 Monitored Switched PDU features (24) C13 and (12) C19 outlets. It is a 30 amp, 415 V, three phase PDU with an IEC 60309 3P+N+E 6h 30A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
Panduit P36E04M | Monitored Switched PDU 30AMP 415V
Panduit - P36E04M - Features
- SmartZone G5 Monitored Switched (MS Series) Rack PDU, 30 A Three Phase, 415V, (24)C13, (12)C19, IEC 60309 3P+N+E 6h 30A (IP44) Input Plug, Color: Black
Specifications
Specifications
Panduit - P36E04M - Product Categories
- Power, Environmental, Security & Connectivity Hardware
- Server Rack Power Distribution Units (PDUs)
Panduit - P36E04M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P36E04M |
| Item Description | MS PDU, 30AMP, 415V, (24)C13, (12)C19, IEC 60309 3P+N+E 6h 30A (IP44) |
| Note | NA Only |
| Product Type | Monitored Switched PDU |
| Mount Orientation | Vertical |
| Sub Brand | SmartZone |
| Plug Type | IEC 60309 3P+N+E 6h 30A (IP44) |
| Input Voltage (V) | 415 |
| Amperage (A) | 30 |
| Number of Outlets | (24)C13, (12)C19 |
| Output Voltage (V) | 240 |
| Phase | 3 Phase |
| Cable Length (ft.) | 10 |
| Cable Length (m) | 3 |
| Overall Depth (In.) | 2.1 |
| Overall Depth (mm) | 53 |
| Overall Height (In.) | 68.9 |
| Overall Height (mm) | 1750 |
| Overall Width (In.) | 3.3 |
| Overall Width (mm) | 84 |
| Power Rating (kW) | 17.3 |
| Standards Met | UL Listed |
| Rack PDU Type | Monitored Switched |
| Part Features | • Operating Temperature: 60° C at Full Load • Hot Swappable Network Module • 1 GB Ethernet • OLED Display for High Visibility • Electronic Rack Access Control • 3 yr. Standard Warranty on All G5 PDUs • USB Port |
Panduit - P36E04M - Package Information
| UPC | 61305679873 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.7500 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
