Brand: Panduit
|
SKU:
PAN-P4-10R-T
Panduit P4-10R-T | Pan-Term P4-10R-T Ring Terminal, Bare, 4 Awg, #10 Stud, Pk200
Regular price
$300.07
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P4-10R-T | Pan-Term P4-10R-T Ring Terminal, Bare, 4 Awg, #1...
Regular price
$300.07
Unit price
Brand: Panduit
|
SKU:
PAN-P4-10R-T
Regular price
$300.07
Unit price
Shipping calculated at checkout.
Description
Description

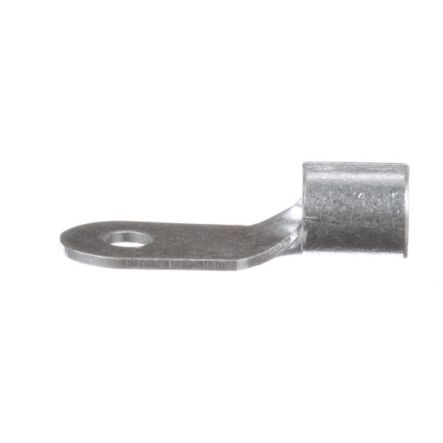

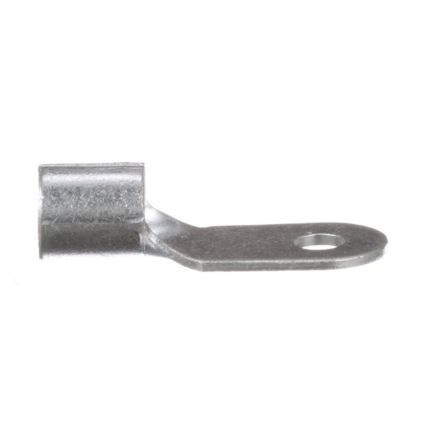

Panduit P4-10R-T | Pan-Term P4-10R-T Ring Terminal, Bare, 4 Awg, #10 Stud, Pk200

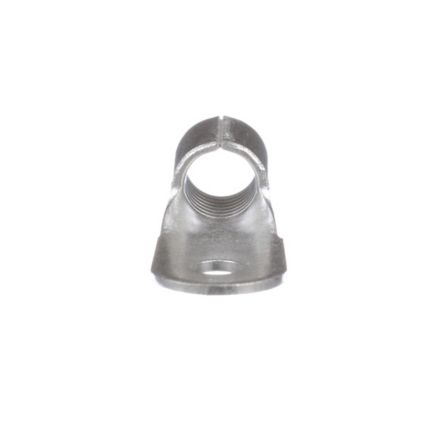

The P4-10R-T Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit - P4-10R-T - Features
- Panduit Pan-Term Terminal, Type P-R, Stranded Conductor, 4 AWG Conductor, #10 Stud, 1.4 in Length, Brazed Seam/Standard Barrel, 0.29 in ID x 0.39 in OD Barrel, Ring Tongue, 0.55 in W x 0.05 in THK Tongue, 2000 VAC, 1/2 in L Wire Strip, 1/2 in Clearance, 302 deg F, Copper, Tin Plated, Metallic
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - P4-10R-T - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P4-10R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P4-10R-T |
| Item Description | Pan-Term P4-10R-T Ring Terminal, Bare, 4 Awg, #10 Stud, Pk200 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | #4 |
| Minimum Wire Size (AWG) | #4 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.39 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 9.9 |
| Inside Diameter (In.) | 0.29 |
| Inside Diameter (mm) | 7.4 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.4 |
| Overall Length (mm) | 35.6 |
| Overall Width (In.) | 0.55 |
| Overall Width (mm) | 14 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-1701, CT-2600 (CD-2600-P4) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
| MPN: | P4-10R-T |
| Barrel Size: | 0.29 in ID x 0.39 in OD |
| Barrel Type: | Brazed Seam/Standard |
| Color: | Metallic |
| Conductor Size: | 4 AWG |
| Conductor Type: | Stranded |
| Finish: | Tin Plated |
| Length: | 1.4 in |
| Material: | Copper |
| Series: | P Series |
| Specifications: | 1/2 in L Wire Strip, 1/2 in Clearance |
| Stud Size: | #10 |
| Temperature Rating: | 302 deg F |
| Tongue Size: | 0.55 in W x 0.05 in THK |
| Tongue Type: | Ring |
| Type: | Type P-R |
| Voltage Rating: | 2000 VAC |
Panduit - P4-10R-T - Package Information
| UPC | 07498387060 |
|---|---|
| Standard Package Quantity | 200 |
| Standard Package Volume (cf) | 0.5972 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
