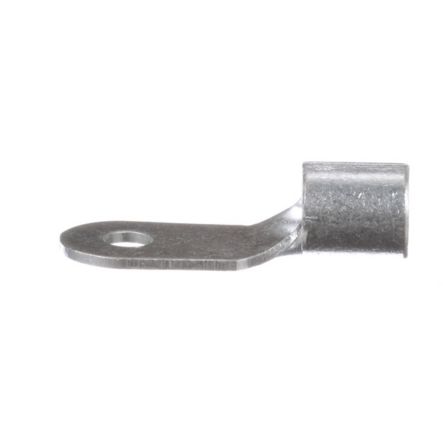

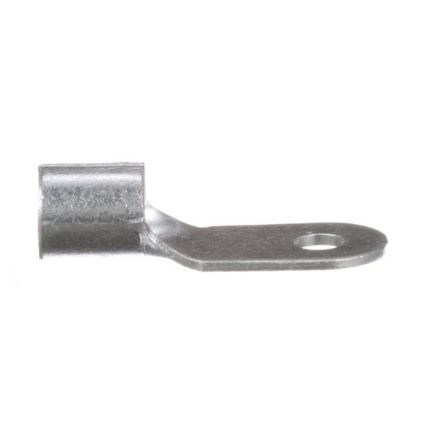

Panduit P4-10R-T | Pan-Term Ring Terminal, Bare, 4 AWG, #10 Stud, P...
Description
Description
Simplify your electrical connections with our non-insulated ring terminal, featuring a secure ring tongue design for lasting performance in various wire sizes.

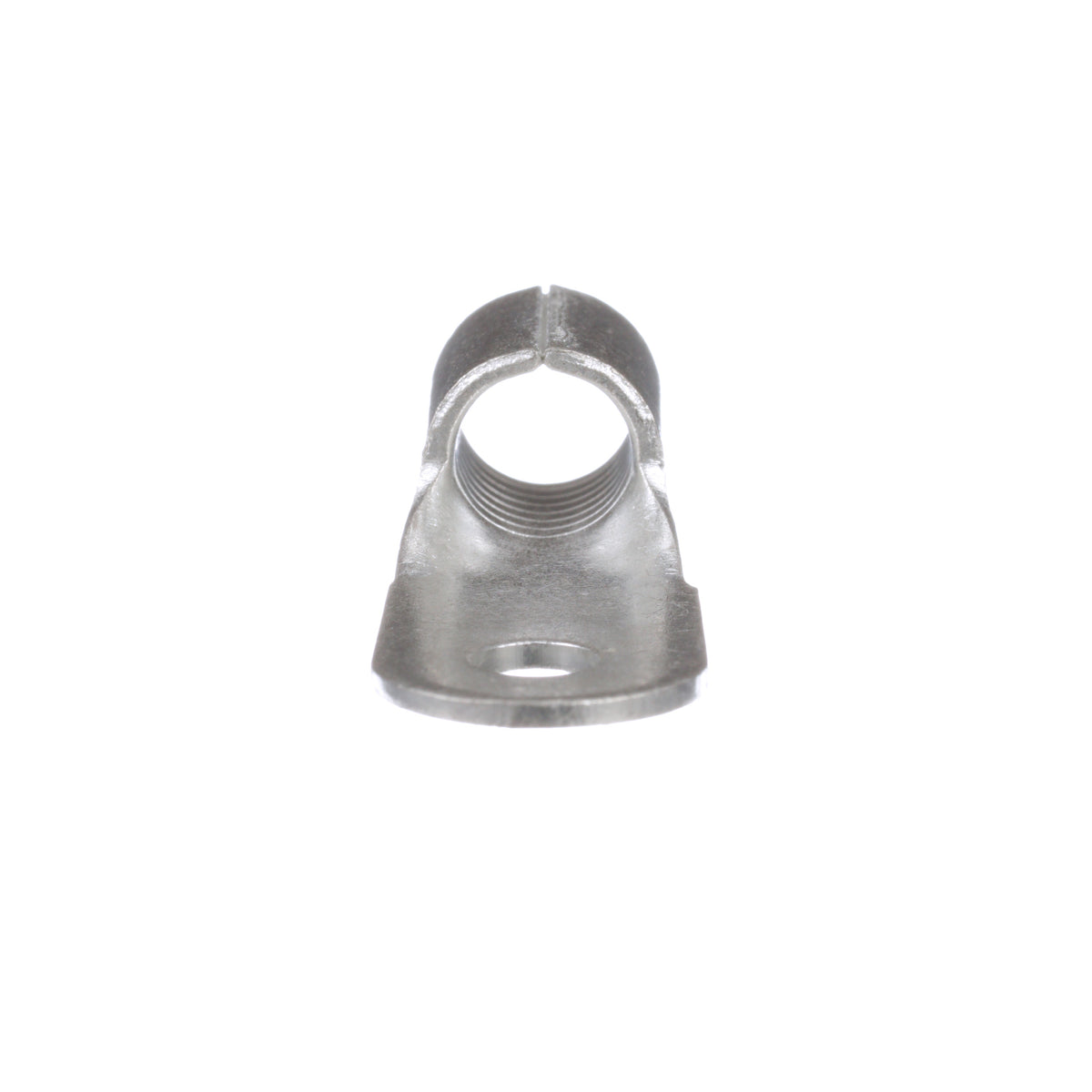

The P4-10R-T Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit Pan-Term Terminal, Type P-R, Stranded Conductor, 4 AWG Conductor, #10 Stud, 1.4 in Length, Brazed Seam/Standard Barrel, 0.29 in ID x 0.39 in OD Barrel, Ring Tongue, 0.55 in W x 0.05 in THK Tongue, 2000 VAC, 1/2 in L Wire Strip, 1/2 in Clearance, 302 deg F, Copper, Tin Plated, Metallic
Panduit - P4-10R-T - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Specifications
Specifications
Panduit - P4-10R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P4-10R-T |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #10 |
| Stud Hole Size (mm) | 5 |
| Stud Size | #10 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 4 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | 4 |
| Minimum Wire Size (AWG) | #4 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.39 |
| Outer Diameter (mm) | 9.9 |
| Inside Diameter (In.) | 0.29 |
| Inside Diameter (mm) | 7.4 |
| UPC | 07498387060 |
Panduit - P4-10R-T - Videos
| Panduit P4-10R-T Video 1 | Click to View |
|---|
