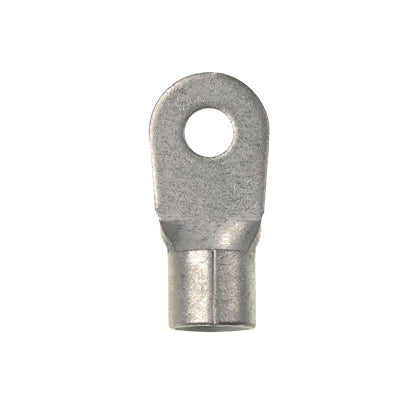

Panduit P4-12R-T | Ring Terminal | UPC - 07498387064
Regular price
$368.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P4-12R-T | Ring Terminal | UPC - 07498387064
Regular price
$368.39
Unit price
Brand: Panduit
|
SKU:
PAN-P4-12R-T
Regular price
$368.39
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Terminal, Type P-R, Stranded Conductor, 4 AWG Conductor, 1/2 in Stud, 1.55 in Length, Brazed Seam/Standard Barrel, 0.29 in ID x 0.39 in OD Barrel, Ring Tongue, 0.86 in W x 0.05 in THK Tongue, 2000 VAC, 1/2 in L Wire Strip, 0.53 in Clearance, 302 deg F, Copper, Tin Plated, Metallic
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit P4-12R-T | Ring Terminal | UPC - 07498387064 Key Specs
| Stud Hole Size (In.) | 13/25 |
| Stud Hole Size (mm) | 13.2 |
| Stud Size | 1/2" |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG SOL) | #4 |
| Maximum Copper Conductor Size (AWG STR) | #4 |
| Maximum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | #4 |
| Wire Strip Length (In.) | 0.53 |
| Wire Strip Length (mm) | 13.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Length (In.) | 0.56 |
Panduit P4-12R-T | Ring Terminal | UPC - 07498387064 Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #4 Barrel Non-Insulated Ring Tongue | Download and View |
Panduit P4-12R-T | Ring Terminal | UPC - 07498387064 Environmental Information
| Panduit's RoHS Statement | Download and View |
