Brand: Panduit | SKU: DRC-006703

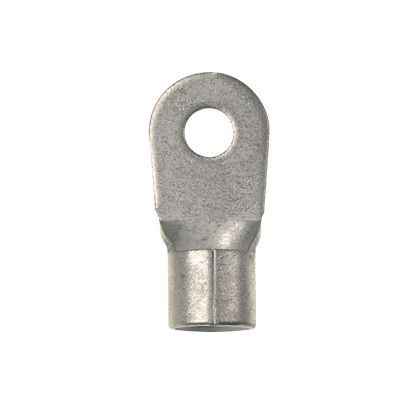

Panduit P4-14R-E | Pan-Term P4-14R-E Ring Terminal

Name: Panduit P4-14R-E | Pan-Term P4-14R-E Ring Terminal
Brand: Anixter
SKU: DRC-006703
Price: 54.72 USD
Availability: InStock

$54.72

Description

Ring terminal, large wire, 4 AWG, 1/4" stud size, non-insulated, standard package.

Brand Name	Panduit
Manufacturer Part Number	P4-14R-E
Item Description	Pan-Term P4-14R-E Ring Terminal
Stud Hole Size (In.)	1/4"
Stud Hole Size (mm)	6
Stud Size	1/4"
Insulation Material	Non-Insulated
Maximum Copper Conductor Size (AWG)	#4
Maximum Wire Size (AWG)	#4
Minimum Wire Size (AWG)	#4
Minimum Copper Conductor Size (AWG)	#4
Wire Strip Length (In.)	1/2
Wire Strip Length (mm)	12.7
Standards Met	UL Listed 587H E52164, CSA Certified LR31212
Base Material	Copper
Maximum Voltage (V)	2000
Finish/Coating	Tin-Plated
Barrel Type	Standard
Maximum Operating Temperature (°C)	150
Maximum Operating Temperature (°F)	302
Outer Diameter (In.)	0.39
Seam Type	Brazed
Outer Diameter (mm)	9.9
Inside Diameter (In.)	0.29
Inside Diameter (mm)	7.4
Sub Brand	Pan-Term
Overall Length (In.)	1.4
Overall Length (mm)	35.6
Overall Width (In.)	0.55
Overall Width (mm)	14
Tongue Length (In.)	1.12
Tongue Length (mm)	28.4
Tongue Thickness (In.)	0.05
Tongue Thickness (mm)	1.3
Tongue Width (In.)	0.55
Tongue Width (mm)	14
Packaging Type	Bottle
Product Type	Ring Terminal
For Use With	CT-1701, CT-2600 (CD-2600-P4)
Part Features	• Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength
