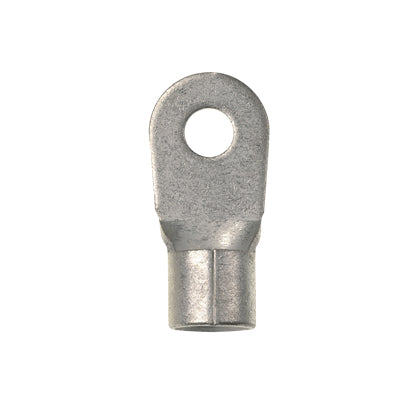

Panduit P4-14R-E | Ring Terminal | UPC - 07498387056
Regular price
$58.74
Unit price
Brand: Panduit
|
SKU:
972612
Regular price
$58.74
Unit price
Description
Description
Panduit Pan-Term Terminal, Type P-R, Stranded Conductor, 4 AWG Conductor, 1/4 in Stud, 1.4 in Length, Brazed Seam/Standard Barrel, 0.29 in ID x 0.39 in OD Barrel, Ring Tongue, 0.55 in W x 0.05 in THK Tongue, 2000 VAC, 1/2 in L Wire Strip, 1/2 in Clearance, 302 deg F, Copper, Tin Plated, Metallic
Features + Benefits
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit P4-14R-E Key Specs
| Stud Hole Size (In.) | 1/5 |
| Stud Hole Size (mm) | 5.1 |
| Stud Size | 1/4" |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG SOL) | #4 |
| Maximum Copper Conductor Size (AWG STR) | #4 |
| Maximum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | #4 |
| Wire Strip Length (In.) | 0.53 |
| Wire Strip Length (mm) | 13.5 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Length (In.) | 0.56 |
Panduit P4-14R-E Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DNF18-110FIB-C Product Page | Download and View |
| Part Drawings | Female Disconnects Expanded Fully Insulated Nylon - A41600 REV04 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
