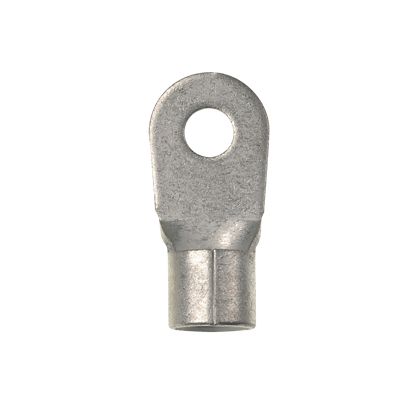

Panduit P4-38R-E | Pan-Term Ring Terminal
Regular price
$4.44
Unit price
Brand: Panduit
|
SKU:
193096
Regular price
$4.44
Unit price
Description
Description
Panduit P4-38R-E | Pan-Term Ring Terminal
Simplify your electrical connections with our non-insulated ring terminal, featuring a secure ring tongue design for lasting performance in various wire sizes.
Panduit Pan-Term Terminal, Type P-R, Stranded Conductor, 4 AWG Conductor, 3/8 in Stud, 1.46 in Length, Brazed Seam/Standard Barrel, 0.29 in ID x 0.39 in OD Barrel, Ring Tongue, 0.68 in W x 0.05 in THK Tongue, 2000 VAC, 1/2 in L Wire Strip, 1/2 in Clearance, 302 deg F, Copper, Tin Plated, Metallic
Panduit - P4-38R-E - Features
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
Specifications
Specifications
Panduit - P4-38R-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P4-38R-E |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 4 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | 4 |
| Minimum Wire Size (AWG) | #4 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | UL Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.39 |
| Outer Diameter (mm) | 9.9 |
| Inside Diameter (In.) | 0.29 |
| Inside Diameter (mm) | 7.4 |
| UPC | 07498387058 |
Panduit - P4-38R-E - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
