Brand: Panduit
|
SKU:
927582-EA
Panduit P4-38R-T | Pan-Term P4-38R-T Ring Terminal, Bare, 4 AWG, 3/8" Stud, PK200
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P4-38R-T | Pan-Term P4-38R-T Ring Terminal, Bare, 4 AWG, 3/...
Regular price
$3.00
Unit price
Description
Description
Panduit P4-38R-T | Pan-Term P4-38R-T Ring Terminal, Bare, 4 AWG, 3/8" Stud, PK200

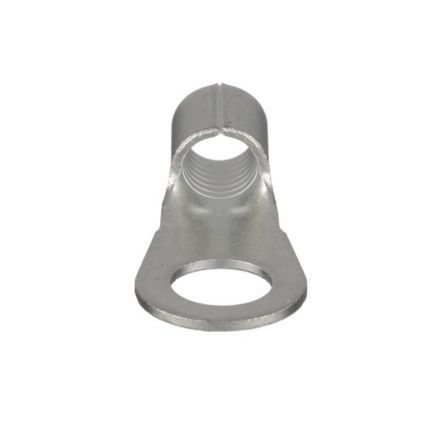

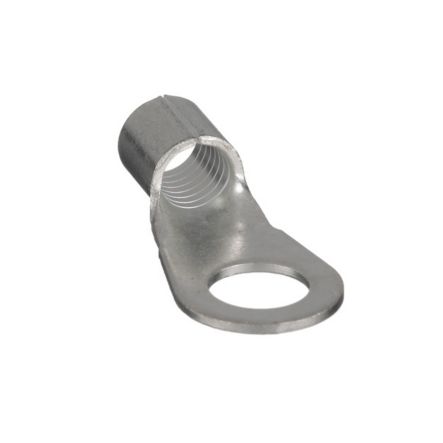

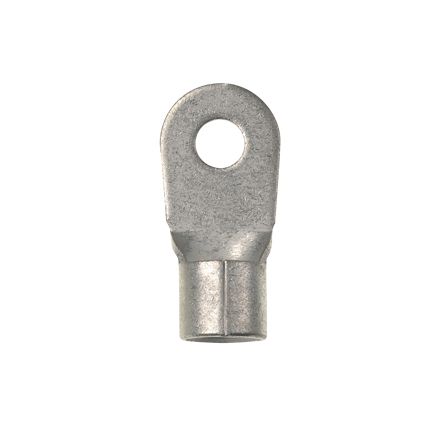

The P4-38R-T Pan-Term Terminal is a non-insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Panduit P4-38R-T - TERMINAL - TERMINAL RING NON INSULATED
Specifications
Specifications
Panduit - P4-38R-T - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P4-38R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P4-38R-T |
| Item Description | Pan-Term P4-38R-T Ring Terminal, Bare, 4 AWG, 3/8" Stud, PK200 |
| Stud Hole Size (In.) | 3/8" |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #4 |
| Maximum Wire Size (AWG) | #4 |
| Minimum Wire Size (AWG) | #4 |
| Minimum Copper Conductor Size (AWG) | #4 |
| Wire Strip Length (In.) | 1/2 |
| Wire Strip Length (mm) | 12.7 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.39 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 9.9 |
| Inside Diameter (In.) | 0.29 |
| Inside Diameter (mm) | 7.4 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.46 |
| Overall Length (mm) | 37.1 |
| Overall Width (In.) | 0.68 |
| Overall Width (mm) | 17.3 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Tongue Width (In.) | 0.68 |
| Tongue Width (mm) | 17.3 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-1701, CT-2600 (CD-2600-P4) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Panduit - P4-38R-T - Package Information
| UPC | 07498387063 |
|---|---|
| Standard Package Quantity | 200 |
| Standard Package Volume (cf) | 0.5972 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - P4-38R-T - Videos
| Video 1 | Click to View |
|---|
