Brand: Panduit
|
SKU:
10404914
Panduit P42E24M | Ms Pdu 60Amp (21)C13/C15 (21)C13/C15/
Regular price
$4,630.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P42E24M | Ms Pdu 60Amp (21)C13/C15 (21)C13/C15/
Regular price
$4,630.19
Unit price
Description
Description
Panduit P42E24M | Ms Pdu 60Amp (21)C13/C15 (21)C13/C15/

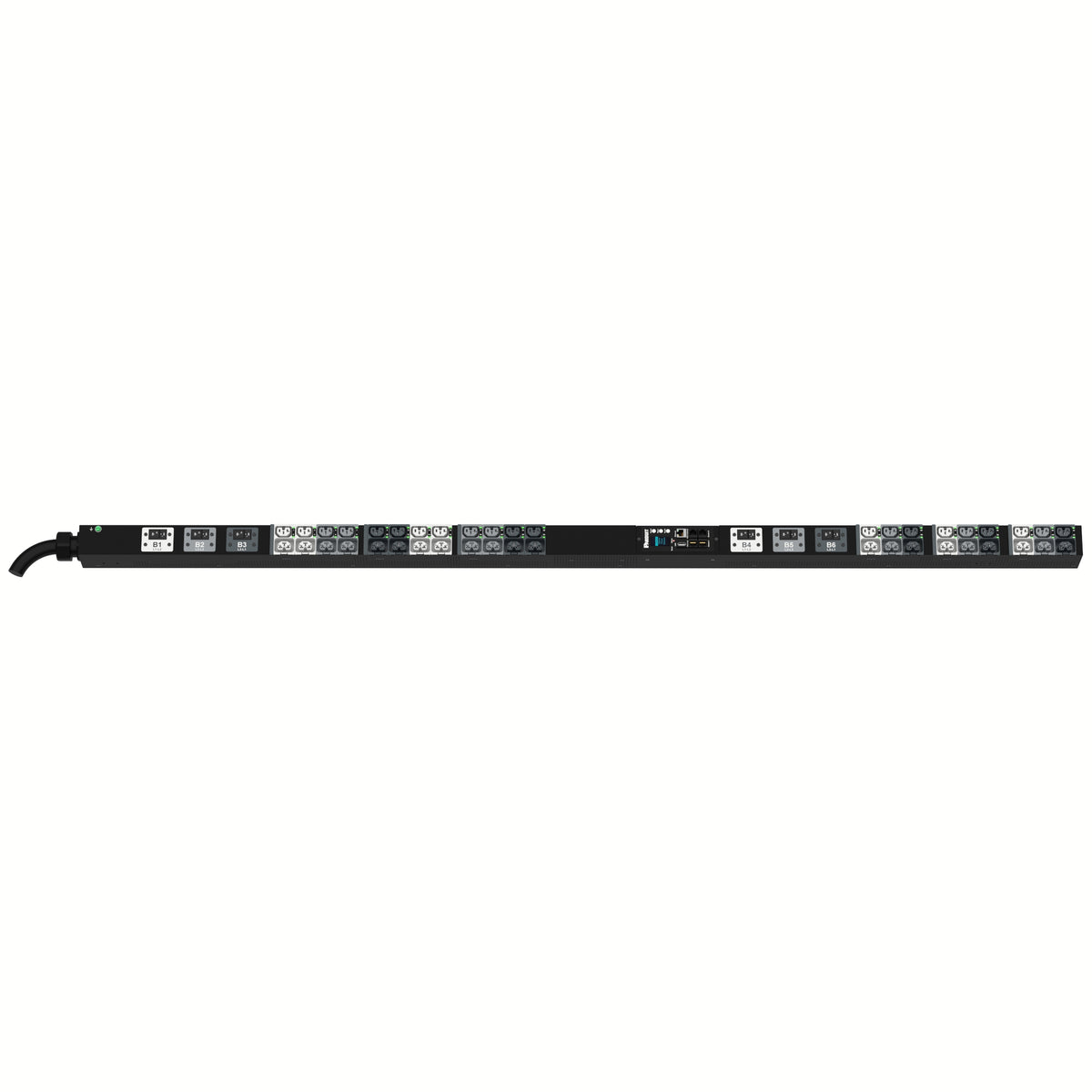

The SmartZone G5 Monitored Switched PDU features (21)C13/C15, (21)C13/15/C19/C21 outlets. This PDU is designed with combination outlets which allows the receptacle to be used as an C13/C15/C19 or C21 outlet. It is a 60 amp 208V three phase PDU with an IEC 60309 3P+E 9h 60A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
Panduit - P42E24M - Features
- Combination Outlets
- Optimized Web Interface
- Hot Swappable Network Module
- No disruption to outlets during controller installation
- Ready to go out of the box
- High Outlet Density
- Optimal Form Factor
- Operating Temperature: 60° C at Full Load
Specifications
Specifications
Panduit - P42E24M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P42E24M |
| Item Description | Ms Pdu 60Amp (21)C13/C15 (21)C13/C15/ |
| Product Type | PDU |
| Mount Orientation | Vertical |
| Sub Brand | SmartZone |
| Input Voltage (V) | 208 |
| Amperage (A) | 60 |
| Output Voltage (V) | 208 |
| Phase | 3 Phase |
| Cable Length (ft.) | 10 |
| Cable Length (m) | 3 |
| Overall Depth (In.) | 3 |
| Overall Depth (mm) | 75 |
| Overall Height (In.) | 72 |
| Overall Height (mm) | 1826 |
| Overall Width (In.) | 2.2 |
| Overall Width (mm) | 56 |
| Overall Length (mm) | 1826 |
| Power Rating (kW) | 17.3 |
| Standards Met | UL Listed |
