Brand: Panduit
|
SKU:
10046756

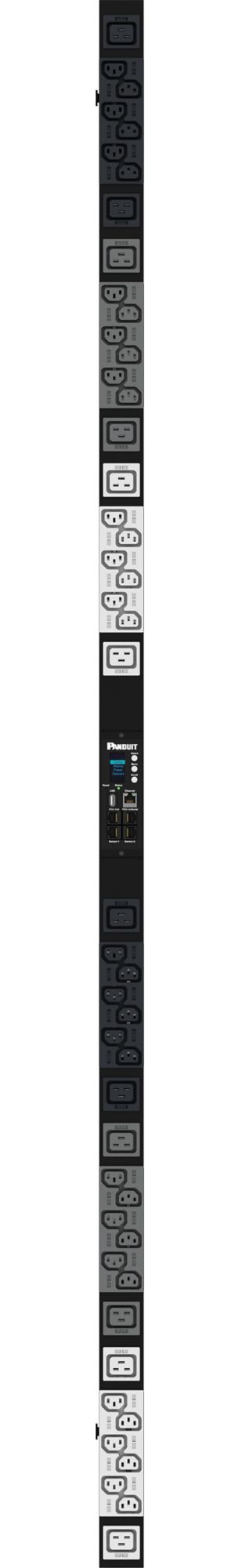

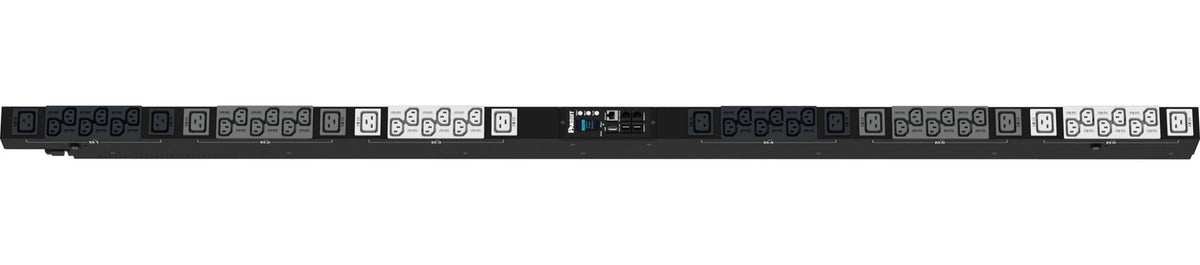

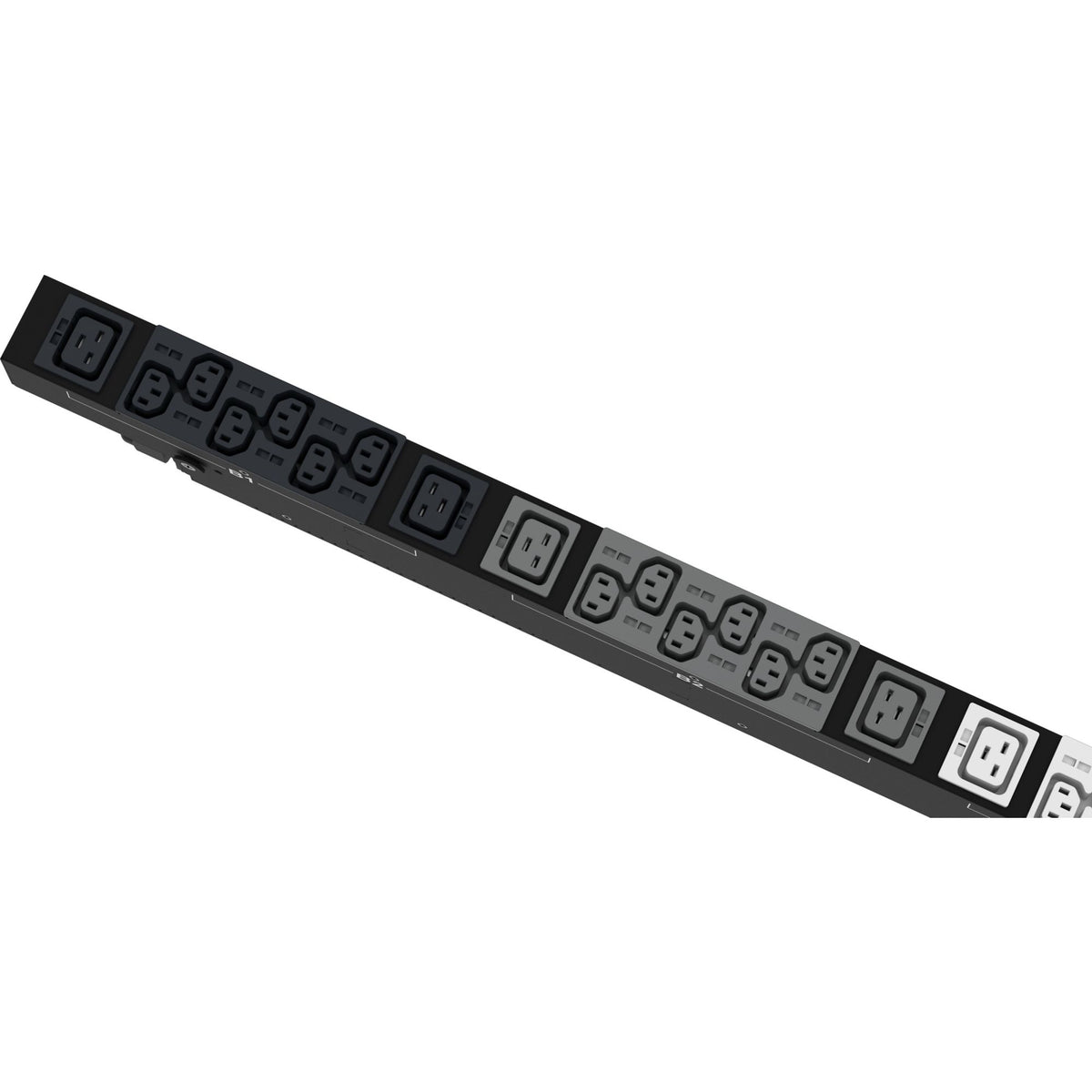

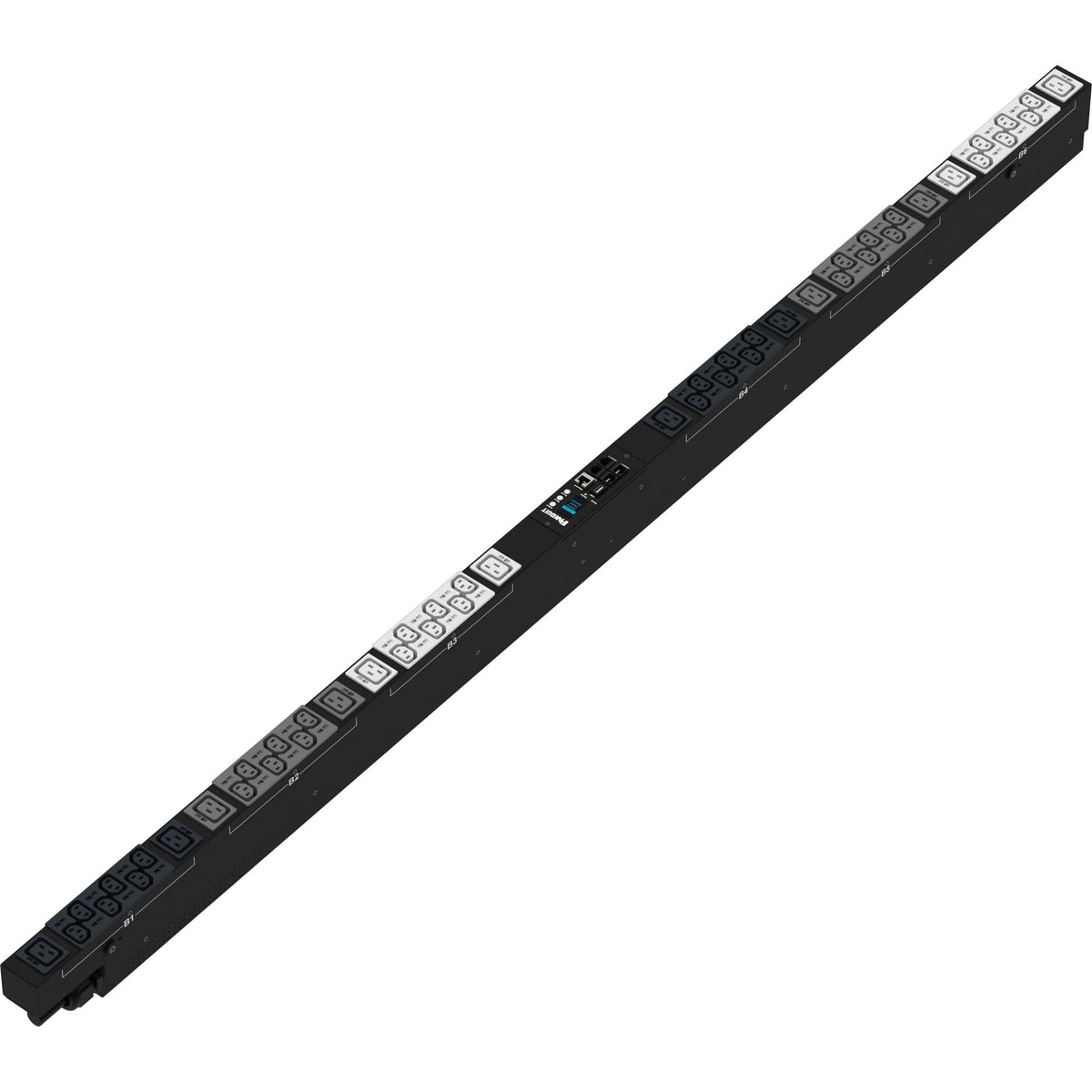

Panduit P48D07M | Panduit SmartZone G5 Intelligent MI Series - Power distribution unit (rack-mountable)
Regular price
$2,644.84
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P48D07M | Panduit SmartZone G5 Intelligent MI Series - Powe...
Regular price
$2,644.84
Unit price
Description
Description
Panduit SmartZone G5 Intelligent MI Series - Power distribution unit (rack-mountable) - AC 415 V - 17300 VA - 3-phase WYE (star) - Ethernet 10/100/1000 - input: IEC 60309 30A - output connectors: 48 (36 x IEC 60320 C13, 12 x IEC 60320 C19) - 0U - 10 ft - North America - black - P48D07M. Panduit SmartZone G5 MI 48-Outlets PDU - Monitored - IEC 60309 3P+N+E 6h 30A (IP44) - 12 x IEC 60320 C19, 36 x IEC 60320 C13 - 120 V AC, 415 V AC - Network (RJ-45) - 0U - Vertical - Rack-mountable, Cabinet-mountable - P48D07M.
Specifications
Specifications
General Information
| Manufacturer | PANDUIT CORP |
|---|---|
| Manufacturer Part Number | P48D07M |
| Manufacturer Website Address | http://www.panduit.com |
| Brand Name | Panduit |
| Product Line | SmartZone |
| Product Series | MI |
| Product Name | SmartZone G5 MI 48-Outlets PDU |
| Marketing Information | The Panduit SmartZone G5 iPDU is more than a power distribution unit and energy meter. These iPDUs monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads, and physical environmental conditions that place critical IT equipment at risk. Panduit's iPDUs provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness), and drive green data center initiatives to save energy and money.Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors, and dual locking power cords are the key to fulfilling mission-critical data center needs. |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Weight (lb) | 21 |
Technical Information
| PDU Type | Monitored |
|---|---|
| Phase | Three Phase |
| Plug/Connector Type | IEC 60309 3P+N+E 6h 30A (IP44) |
| Plug/Connector Detail | 1 x IEC 60309 3P+N+E 6h 30A (IP44) |
| Receptacle Type | IEC 60320 C19 |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C19 |
| Receptacle Detail | 36 x IEC 60320 C13 |
| Protection Type | Circuit Protection |
| Protection Type | Overload Protection |
Power Description
| Input Voltage | 120 V AC |
|---|---|
| Input Voltage | 415 V AC |
| Output Voltage | 208 V AC |
| Power Rating (VA) | 17.30 kVA |
| Input Current | 30 A |
Management
| Management Protocols | Telnet, SNMP 3, HTTP, HTTPS, SSH, LDAP, SNMP v3, TLS, Encrypted Security |
|---|
Interfaces/Ports
| Network (RJ-45) | Yes |
|---|
Physical Characteristics
| Mounting Orientation | Vertical |
|---|---|
| Mount Type | Rack-mountable |
| Mount Type | Cabinet-mountable |
| Rack Height | 0U |
| Width | 2" |
| Depth | 4.4" |
| Length | 71.7" |
Miscellaneous
| Environmentally Friendly | Yes |
|---|---|
| Environmental Certification | REACH |
| Environmental Certification | RoHS |
Warranty
| Limited Warranty | 3 Year |
|---|
