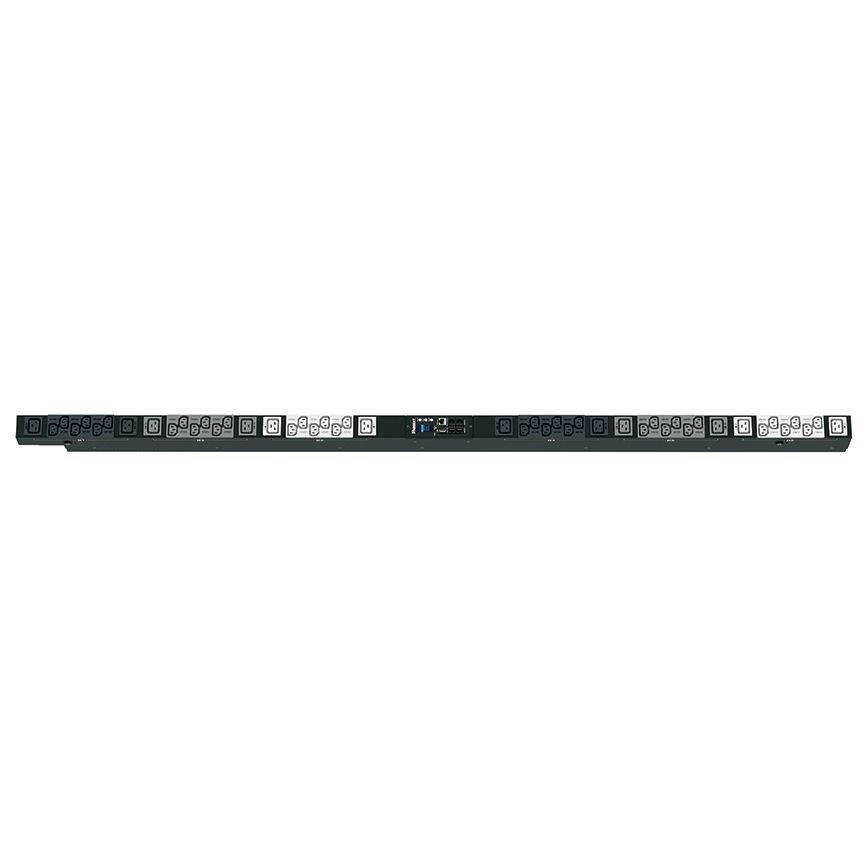

Panduit P48D32M | G5 Monitored Input PDU
Description
Description
The Panduit SmartZone G5 iPDU is more than a power distribution unit and energy meter. These iPDU's monitor the data center power and environment (at the rack or cabinet level), by continuously scanning for electrical circuit overloads and physical environmental conditions that place critical IT equipment at risk. Panduit iPDU's provide comprehensive, accurate, energy measurement data to efficiently use power resources, make informed capacity planning decisions, improve uptime, measure PUE (power usage effectiveness) and drive green data center initiatives to save energy and money. Making the right choice in IT equipment is essential for a safe, efficient data center operation. Our full range of iPDUs, environmental sensors and dual locking power cords are the key to fulfilling mission critical data center needs.
Panduit SmartZone G5 Power Distribution Unit, 3-Phase, Series: MI Series, 208 VAC, 40 A, 48 Outlets, 10 ft Cord, 50/60 Hz, Surface/Vertical, NEMA CS-8365C Plug, IEC C-13/IEC C-19 Receptacle, Black, 2 in W x 4.4 in D x 71.7 in H
Enhance data center efficiency with our G5 monitored input PDU. Benefit from real-time power monitoring, space-saving design, and rapid fault detection for improved system reliability.
Panduit SmartZone G5 Monitored Input PDU, 50A, 3Phase, 208 V, (36)C13, (12)C19, CS8365C Input Plug with a 10’ (3m) power cord, Color: Black
Panduit - P48D32M - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - standard IL/standard fan out (singlemode)
- 24 in connector variant
- 12 fibers
- Without surge protection
Specifications
Specifications
Panduit - P48D32M - Specifications
| Number Of Outlets | Other |
|---|---|
| UNSPSC Code | 39121017 |
| Technical Information | UL Listed |
| Note | NA Only |
| Product Type | PDU |
| Mount Orientation | Vertical |
| Sub Brand | G5 |
| Rack PDU Type | Monitored Input |
| Plug Type | CS8365 |
| Input Voltage (V) | 208 |
| Input Amperage (A) | 50 |
| Phase | 3-Phase |
| Output Receptacles | (36)C13, (12)C19 |
| Output Voltage (V) | 208 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 52 |
| Overall Height (In.) | 72.8 |
| Overall Height (mm) | 1850 |
| Overall Depth (In.) | 4.4 |
| Overall Depth (mm) | 112 |
| Standards Met | UL Listed |
| UPC | 61305631796 |
Panduit - P48D32M - Package Information
| UPC | 61305631796 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 2.4176 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
