Panduit P48D44M | SmartZone Monitored Input PDU
Regular price
$1,424.33
Unit price
Brand: Panduit
|
SKU:
970223
Regular price
$1,424.33
Unit price
Description
Description

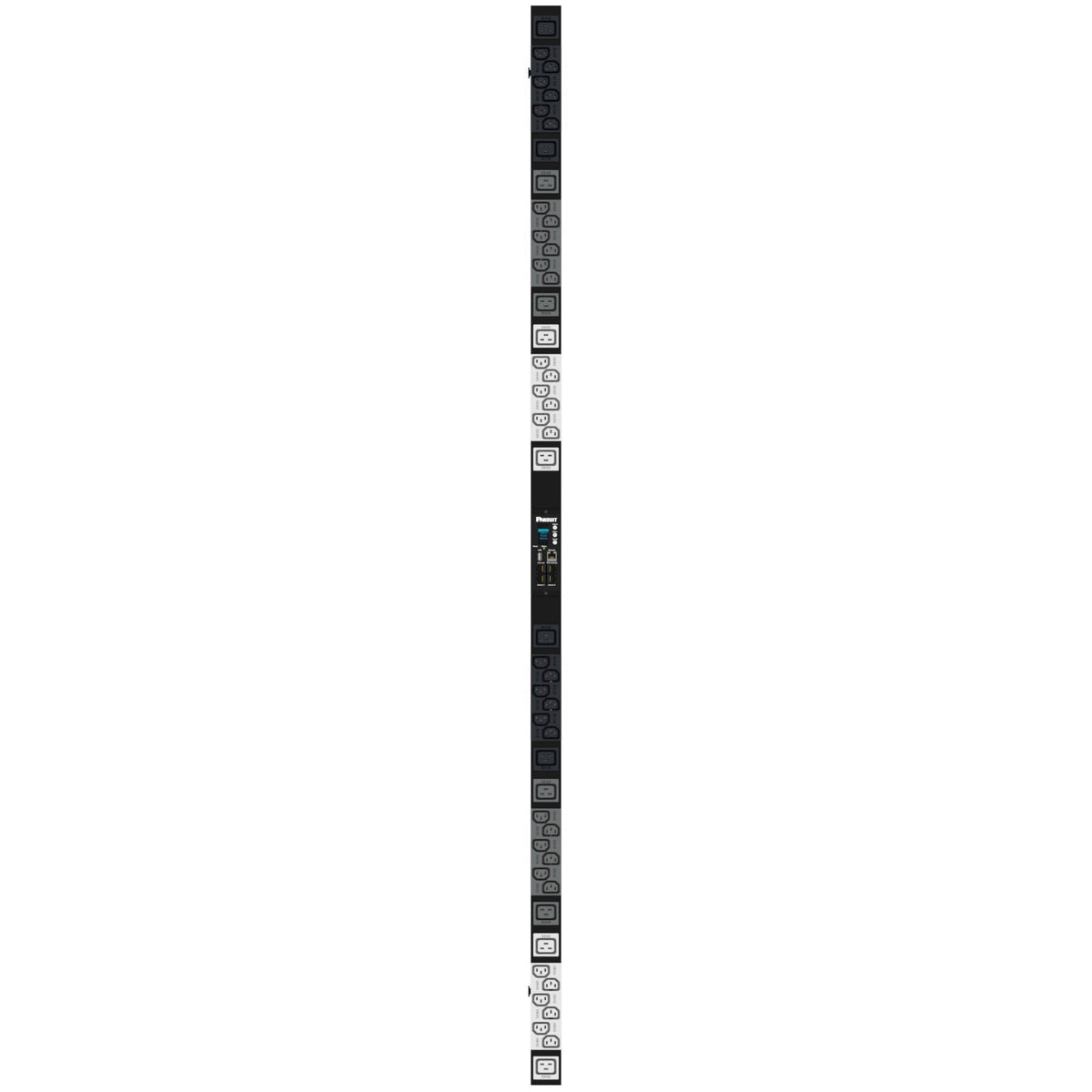

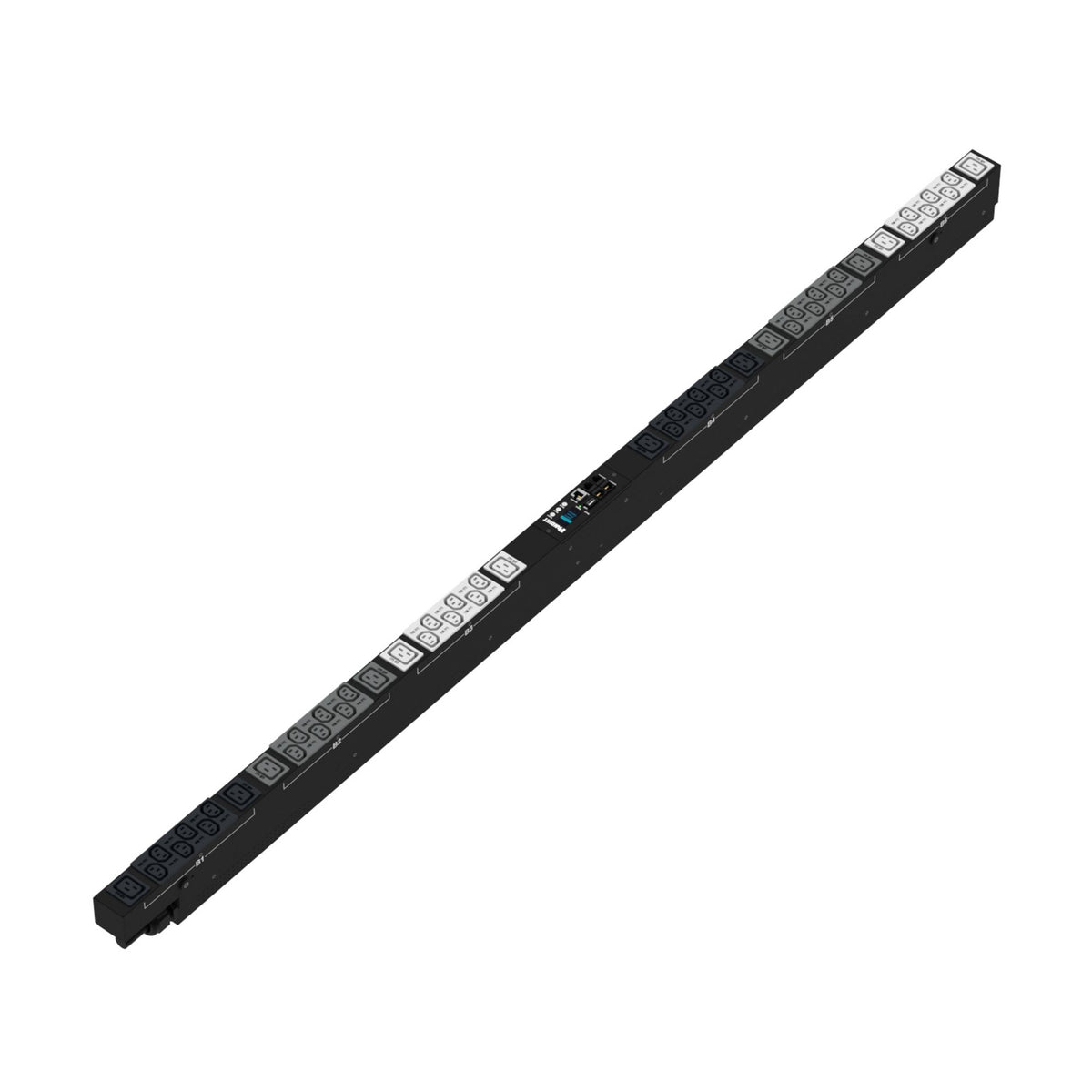

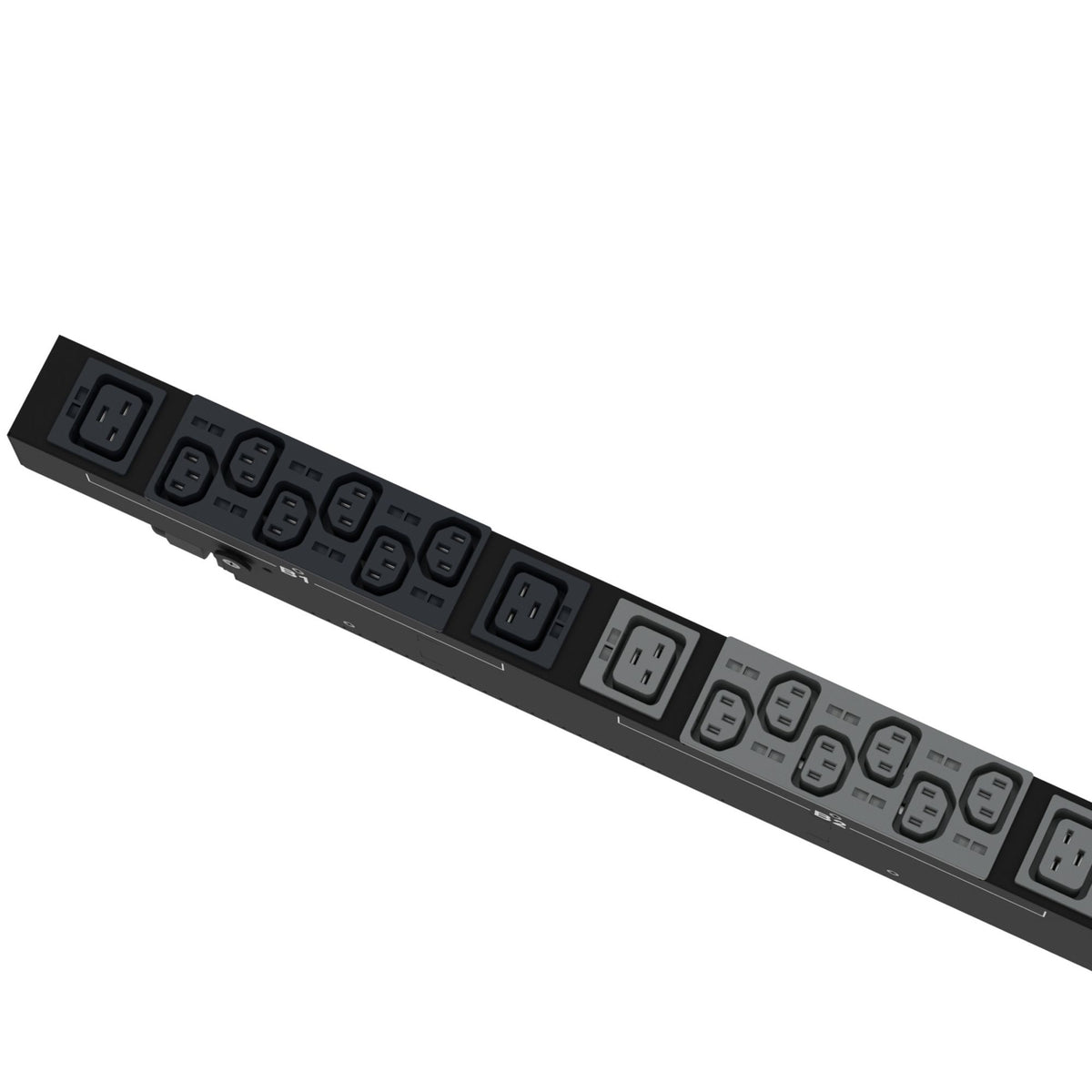

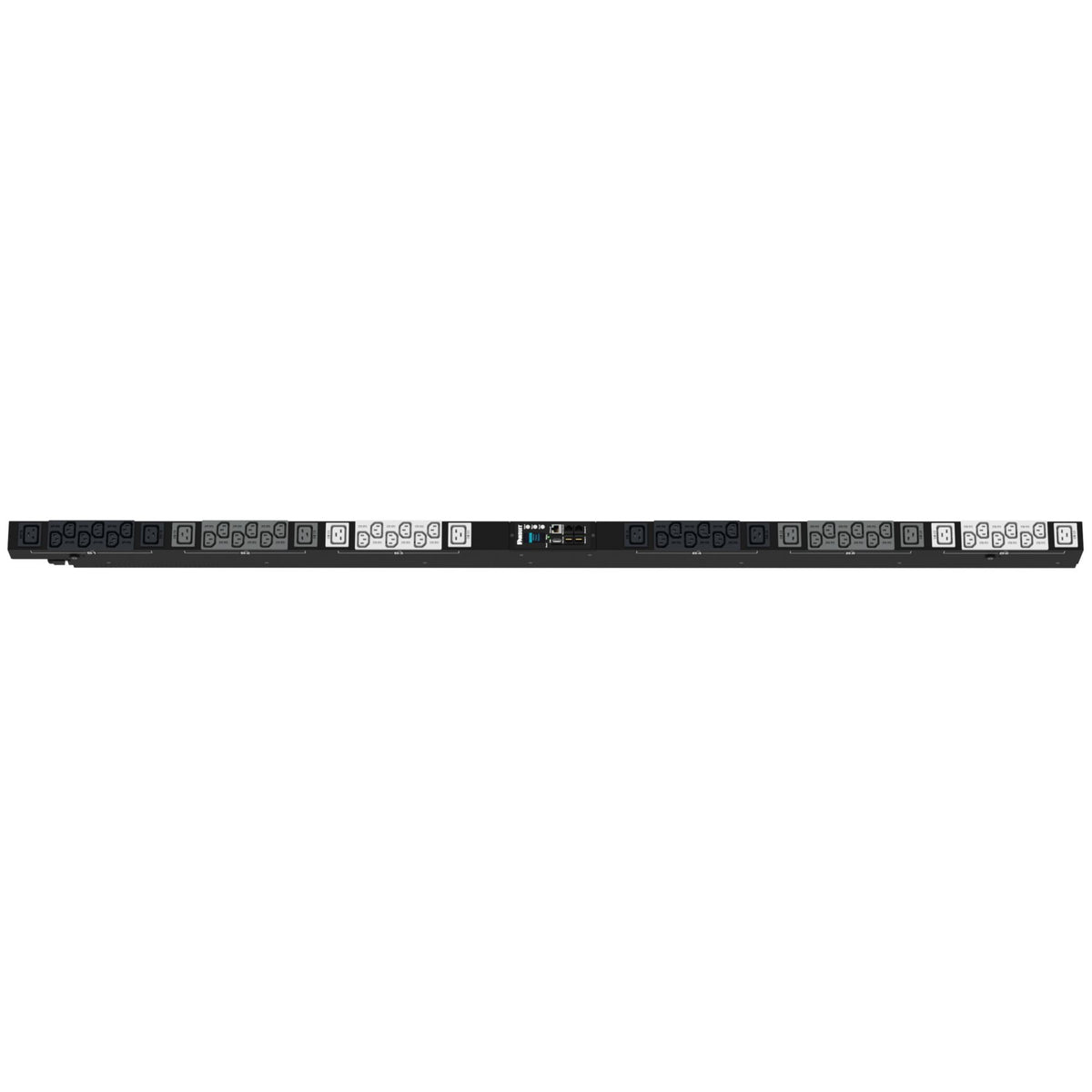

Panduit P48D44M | SmartZone Monitored Input PDU
The SmartZone G5 Monitored Input PDU features (36) C13 and (12) C19 outlets. It is a 32 amp, 400 V, three phase PDU with an IEC 60309 3P+N+E 6h 32A (IP44) input plug and a 10 foot (3m) power cord. The PDU is black.
The SmartZonea? G5 Monitored Input (MI Series) Rack PDU features (36) C13 and (12) C19 outlets. It is a 32 amp, 415 V three phase PDU with an IEC 60309 3P+N+E 6h 32A plug. It measures 71.654 inches L x 2.047 inches W x4.4 inches D (1821.2mm x 50.8mm x 111.8mm). The PDU is black.
Specifications
Specifications
Panduit - P48D44M - Product Categories
- Power, Environmental, Security & Connectivity Hardware
- Server Rack Power Distribution Units (PDUs)
Panduit - P48D44M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P48D44M |
| Item Description | SmartZone Monitored Input PDU |
| Note | EMEA Only |
| Product Type | Monitored Input PDU |
| Mount Orientation | Vertical |
| Sub Brand | SmartZone |
| Plug Type | IEC 60309 3P+N+E 6h 32A (IP44) |
| Input Voltage (V) | 415 |
| Amperage (A) | 32 |
| Number of Outlets | (36)C13, (12)C19 |
| Output Voltage (V) | 230 |
| Phase | 3 Phase |
| Cable Length (ft.) | 10 |
| Cable Length (m) | 3 |
| Overall Depth (In.) | 4.4 |
| Overall Depth (mm) | 112 |
| Overall Height (In.) | 72.8 |
| Overall Height (mm) | 1850 |
| Overall Width (In.) | 2 |
| Overall Width (mm) | 52 |
| Power Rating (kW) | 22 |
| Standards Met | CE Compliant |
| Rack PDU Type | Monitored Input |
| Number of Outlets | 42 |
| Type | RACK MOUNT PDU |
| UNSPSC Code | 39121017 |
Panduit - P48D44M - Package Information
| UPC | 61305631786 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 2.4176 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
