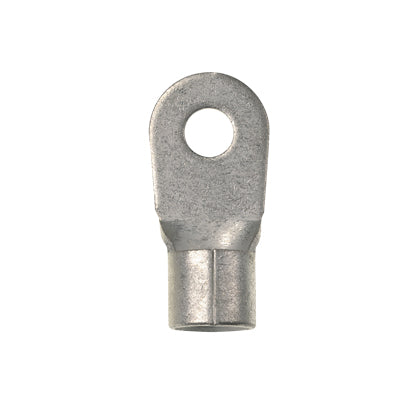

Panduit P6-12R-E | Ring Terminal | UPC - 07498387070
Regular price
$53.83
Unit price
Brand: Panduit
|
SKU:
10044632
Regular price
$53.83
Unit price
Description
Description
Panduit Pan-Term Terminal, Type P-R, Stranded Conductor, 6 AWG Conductor, 1/2 in Stud, 1.43 in Length, Brazed Seam/Standard Barrel, 0.23 in ID x 0.32 in OD Barrel, Ring Tongue, 0.82 in W x 0.05 in THK Tongue, 2000 VAC, 7/16 in L Wire Strip, 0.51 in Clearance, 302 deg F, Copper, Tin Plated, Metallic
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation support helps to prevent wire damage in bending applications
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Brazed seam protects terminal barrel from splitting during the crimp process
Panduit Panduit P6-12R-E | Ring Terminal | UPC - 07498387070 Key Specs
| Stud Hole Size (In.) | 13/25 |
| Stud Hole Size (mm) | 13.2 |
| Stud Size | 1/2" |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG SOL) | #6 |
| Maximum Copper Conductor Size (AWG STR) | #6 |
| Maximum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | #6 |
| Wire Strip Length (In.) | 0.46 |
| Wire Strip Length (mm) | 11.7 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Tin-Plated |
| Color Code | Metallic |
| Barrel Length (In.) | 0.51 |
Panduit Panduit P6-12R-E | Ring Terminal | UPC - 07498387070 Environmental Information
| Panduit's RoHS Statement | Download and View |
