Panduit P6-14RHT6-E | Pan-Term Ring Terminal
Regular price
$33.95
Unit price
Brand: Panduit
|
SKU:
10044634
Regular price
$33.95
Unit price
Description
Description

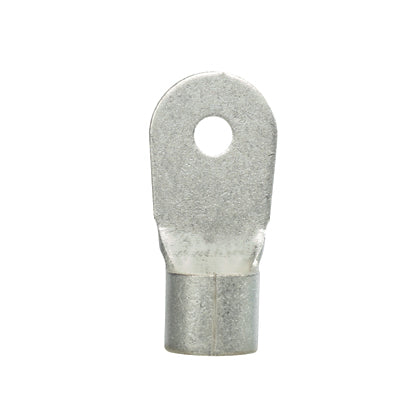

Panduit P6-14RHT6-E | Pan-Term Ring Terminal
Panduit Pan-Term Ring Terminal, High Temperature Non-Insulated, Series: P-RHT, Stranded Conductor, 6 AWG Conductor, 1/4 in Stud, 1.21 in Length, Brazed Seam Barrel, 0.23 in ID x 0.32 in OD Barrel, Ring Tongue, 0.47 in W x 0.05 in THK Tongue, 2000 VAC, 7/16 in L Wire Strip, 0.43 in Clearance, Standard Barrel Configuration, 650 deg F, Copper, Nickel Plated, Metallic
Panduit - P6-14RHT6-E - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Specifications
Specifications
Panduit - P6-14RHT6-E - Specifications
| Stud Hole Size (In.) | 1/4 |
|---|---|
| Stud Hole Size (mm) | 6 |
| Stud Size | 1/4" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 6 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | 6 |
| Minimum Wire Size (AWG) | #6 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Standards Met | cULus Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Nickel-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 343 |
| Maximum Operating Temperature (°F) | 650 |
| Outer Diameter (In.) | 0.32 |
| Outer Diameter (mm) | 8.1 |
| Inside Diameter (In.) | 0.23 |
| Inside Diameter (mm) | 5.8 |
| Type | Ring Terminal |
| UNSPSC Code | 39121400 |
Panduit - P6-14RHT6-E - Package Includes
| UPC | 07498313125 |
|---|---|
| Std. Pkg. Qty. | 20 |
| Std. Pkg. Volume (cf) | 0.0074 |
| Std. Ctn. Qty. | 200 |
| Std. Ctn. Volume (cf) | 0.0736 |
