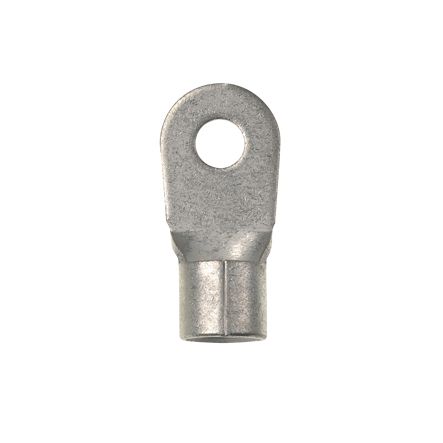

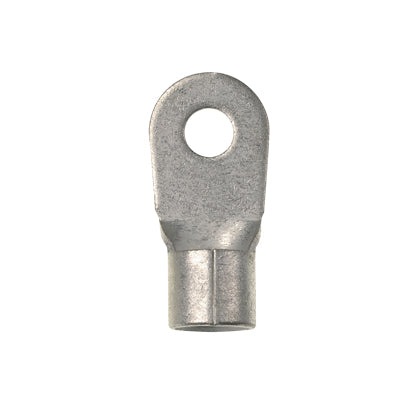

Panduit P6-8R-T | Pan-Term Ring Terminal
Description
Description
Simplify your electrical connections with our non-insulated ring terminal, featuring a secure ring tongue design for lasting performance in various wire sizes.
Ring terminal, large wire, 6 AWG, #8 stud size, non-insulated, bulk package.
Panduit Pan-Term Ring Terminal, Non-Insulated, Series: P-R, Stranded Conductor, 6 AWG Conductor, #8 Stud, 1.21 in Length, Brazed Seam Barrel, 0.23 in ID x 0.32 in OD Barrel, Ring Tongue, 0.47 in W x 0.06 in THK Tongue, 2000 VAC, 7/16 in L Wire Strip, 0.43 in Clearance, Standard Barrel Configuration, 302 deg F, Copper, Tin Plated, Metallic
Panduit - P6-8R-T - Features
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Specifications
Specifications
Panduit - P6-8R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P6-8R-T |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Stud Hole Size (In.) | #8 |
| Stud Hole Size (mm) | 4 |
| Stud Size | #8 |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | 6 |
| Minimum Copper Conductor Size (AWG) | #6 |
| Maximum Wire Size (AWG) | 6 |
| Minimum Wire Size (AWG) | #6 |
| Wire Strip Length (In.) | 7/16 |
| Wire Strip Length (mm) | 11.1 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.32 |
| Outer Diameter (mm) | 8.1 |
| Inside Diameter (In.) | 0.23 |
| Inside Diameter (mm) | 5.8 |
| UPC | 07498387071 |
