Brand: Panduit
|
SKU:
989272
Panduit P6TI58 | Beam Clamp, 5/16"-1/2" Flange, Rod Hanger, 1/4"-20, Pack of 100
Regular price
$3.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P6TI58 | Beam Clamp, 5/16"-1/2" Flange, Rod Hange...
Regular price
$3.45
Unit price
Description
Description

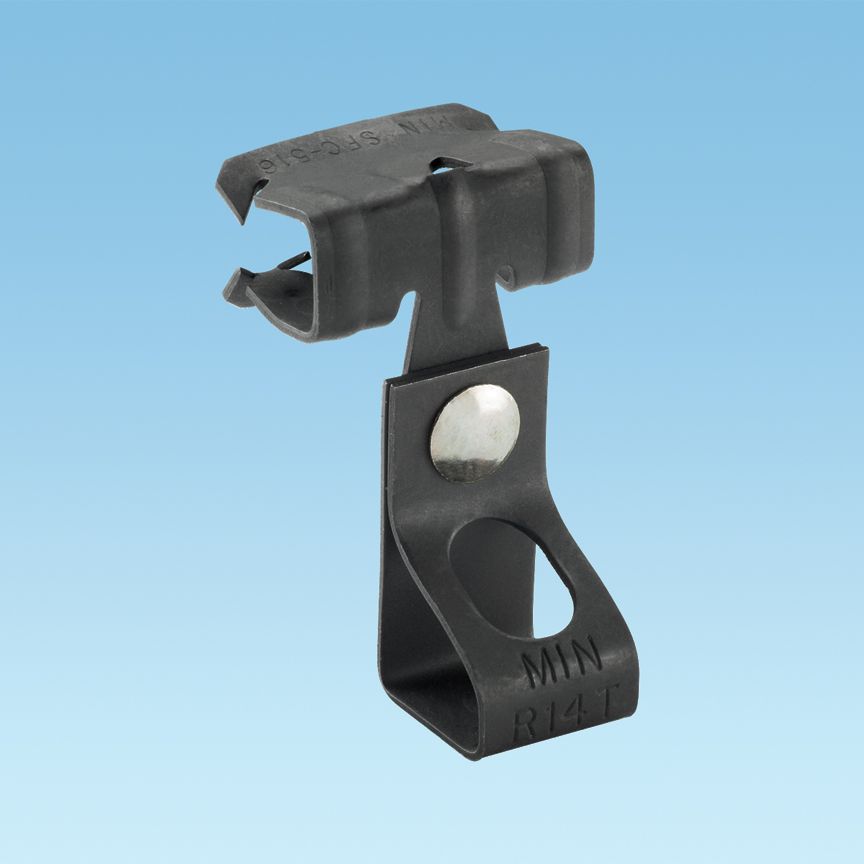

Panduit P6TI58 | Beam Clamp, 5/16"-1/2" Flange, Rod Hanger, 1/4"-20, Pack of 100
Panduit StrongHold Beam Clamp, 3/8 to 16 in Rod, 5/16 to 1/2 in Flange Thickness, 160 lb, Metallic
Beam clamp for 5/16 - 1/2 flange with 3/8 threaded rod hanger - threaded hole, static load capacity: 160 lbs.
Beam clamp for 5/16 - 1/2 flange with 3/8 threaded rod hanger - threaded hole, static load capacity: 160 lbs.
Panduit - P6TI58 - Features
- Minimize waste, optimize cable management, speed deployment, improve flexibility and manageability for lower installation cost
- Applications: (1) Hammer-on beam clamps allow for easy installation (2) Options available for threaded or non-threaded rod.
- Attach to beam with screw
- Install with screwdriver, nut driver or standard wrench
- Incorporate tapped holes to accommodate threaded rod
Specifications
Specifications
Panduit - P6TI58 - Specifications
| UNSPSC Code | 31162900 |
|---|---|
| Technical Information | UL/cUL, RoHS Compliant |
| Application | (1) Hammer-on beam clamps allow for easy installation (2) Options available for threaded or non-threaded rod. |
| Color | Metallic |
| Mounting Bolt Method | Threaded |
| Mounting Hole Thread Size | 3/8 |
| Standards Met | UL/cUL ,RoHS Compliant |
| Static Load Capacity (kg) | 72.6 |
| Static Load Capacity (lb) | 160 |
| Maximum Flange Thickness (In.) | 0.31 |
| Maximum Flange Thickness (mm) | 7.9 |
| Sub Brand | StrongHold™ |
| Part Features | Accomodates 3/8-16 threaded rod, Hammer-On Installation |
| UPC | 07498363428 |
Panduit - P6TI58 - Package Information
| UPC | 07498363428 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.1990 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - P6TI58 - Videos
| Panduit P6TI58 Videos | Click to View |
|---|
