Brand: Panduit
|
SKU:
10044640

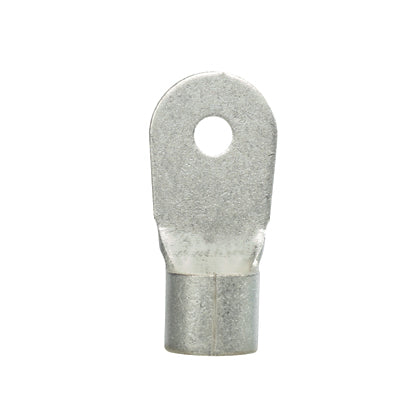

Panduit P8-10RHT6-Q | Ring Terminal | UPC - 07498318965
Regular price
$35.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit P8-10RHT6-Q | Ring Terminal | UPC - 07498318965
Regular price
$35.24
Unit price
Description
Description
Panduit Pan-Term Ring Terminal, High Temperature Non-Insulated, Series: P-RHT, Stranded Conductor, 8 AWG Conductor, #10 Stud, 1.14 in Length, Brazed Seam Barrel, 0.19 in ID x 0.27 in OD Barrel, Ring Tongue, 0.42 in W x 0.04 in THK Tongue, 2000 VAC, 3/8 in L Wire Strip, 0.43 in Clearance, Standard Barrel Configuration, 650 deg F, Copper, Nickel Plated, Metallic
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Panduit Panduit P8-10RHT6-Q | Ring Terminal | UPC - 07498318965 Key Specs
| Stud Hole Size (In.) | 1/5 |
| Stud Hole Size (mm) | 5.1 |
| Stud Size | #10 |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG SOL) | #8 |
| Maximum Copper Conductor Size (AWG STR) | #8 |
| Maximum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | #8 |
| Wire Strip Length (In.) | 0.41 |
| Wire Strip Length (mm) | 10.4 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Nickel-Plated |
| Color Code | Metallic |
| Barrel Length (In.) | 0.46 |
| Barrel Length (mm) | 11.6 |
Panduit Panduit P8-10RHT6-Q | Ring Terminal | UPC - 07498318965 Environmental Information
| Panduit's RoHS Statement | Download and View |
