Panduit P8-10RNHT6-Q | Ring Terminal | UPC - 07498319962
Description
Description

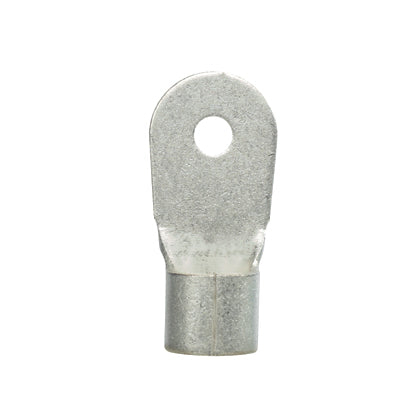

Panduit Ring Terminal, Type P-RHT High Temperature Loose Piece Non-Insulated, Stranded Conductor, 8 AWG Conductor, #10 Stud, 1.09 in Length, Brazed Seam/Internal Serration/Standard Barrel, 0.19 in ID x 0.27 in OD Barrel, Narrow Ring Tongue, 0.36 in W x 0.04 in THK Tongue, 2000 V, Specifications: 0.41 in Mounting Hole Size, 0.41 in Mounting Hole Size, 0.43 in Clearance, 3/8 in L Wire Strip, Ring Shape Enclosure, 650 deg F, Copper, Nickel Plated, Metallic
- Ring tongue design assures a secure connection in high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Brazed seam protects terminal barrel from splitting during the crimp process
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Panduit Panduit P8-10RNHT6-Q | Ring Terminal | UPC - 07498319962 Key Specs
| Stud Hole Size (In.) | 1/5 |
| Stud Hole Size (mm) | 5.1 |
| Stud Size | #10 |
| Insulation Material | Non-insulated |
| Maximum Copper Conductor Size (AWG SOL) | #8 |
| Maximum Copper Conductor Size (AWG STR) | #8 |
| Maximum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | #8 |
| Wire Strip Length (In.) | 0.41 |
| Wire Strip Length (mm) | 10.4 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Maximum Voltage (kV) | 2 |
| Finish/Coating | Nickel-Plated |
| Color Code | Metallic |
| Barrel Length (In.) | 0.46 |
| Barrel Length (mm) | 11.6 |
Panduit Panduit P8-10RNHT6-Q | Ring Terminal | UPC - 07498319962 Environmental Information
| Panduit's RoHS Statement | Download and View |
