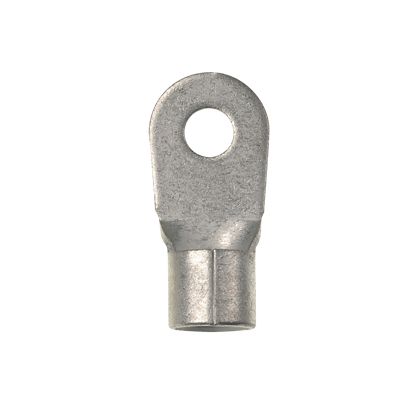

Panduit P8-38R-T | Pan-Term P8-38R-T Ring Terminal
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
PAN-P8-38R-T-EA
Regular price
$1.46
Unit price
Description
Description
Panduit P8-38R-T | Pan-Term P8-38R-T Ring Terminal
Ring terminal, large wire, 8 AWG, 3/8" stud size, non-insulated, bulk package.
Specifications
Specifications
Panduit - P8-38R-T - Product Categories
- Wire Termination
- Ring Terminals
Panduit - P8-38R-T - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | P8-38R-T |
| Item Description | Pan-Term P8-38R-T Ring Terminal |
| Stud Hole Size (In.) | 3/8" |
| Stud Hole Size (mm) | 10 |
| Stud Size | 3/8" |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | #8 |
| Minimum Wire Size (AWG) | #8 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Wire Strip Length (In.) | 3/8 |
| Wire Strip Length (mm) | 9.5 |
| Standards Met | cULus Listed 587H E52164, CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 2000 |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Outer Diameter (In.) | 0.27 |
| Seam Type | Brazed |
| Outer Diameter (mm) | 6.8 |
| Inside Diameter (In.) | 0.19 |
| Inside Diameter (mm) | 4.8 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.25 |
| Overall Length (mm) | 31.8 |
| Overall Width (In.) | 0.59 |
| Overall Width (mm) | 15 |
| Tongue Length (In.) | 0.95 |
| Tongue Length (mm) | 24.1 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.59 |
| Tongue Width (mm) | 15 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| For Use With | CT-1701, CT-2600 (CD-2600-P8) |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
Brand Name - P8-38R-T - Package Information
| UPC | 07498387087 |
|---|---|
| Standard Package Quantity | 200 |
| Standard Package Volume (cf) | 0.4190 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
